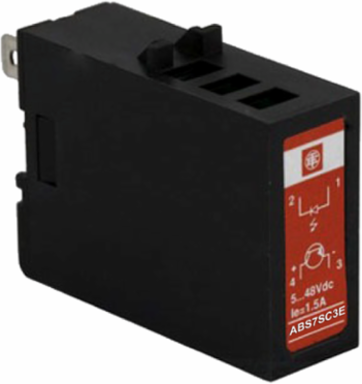

Schneider Electric ABS7SC3E Plug-in Solid State Relay 12.5 mm, 5-48 V DC, 2 A

MPN: ABS7SC3E
PPN: SCH-ABS7SC3E
UNSPSC: 39122333

$33.69

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 5VDC to 48VDC prewired sub-bases. Its response time is less than 0.1ms from state 0 to 1 and less than 0.6ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 12.5mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7R16T332, ABE7P16T330E, ABE7P16T330, ABE7P16T318, ABE7R16T330, and ABE7P16T318E sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.

Features

Enabling connection/adaptation of control signals of PLC cards equipped with HE10 connectors
Plug & play solution offering 8, 12, or 16 channel modularity, for a 1, 2, and 3 wire connection
Offering voltage and power adaptation and common polarities distribution
Figuring solid state and electromechanical technology, smart sub-bases for analog signal connection
Ensuring smart compatibility with Modicon PLCs and Modicon I/O modules

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Latvia

Important Information Attributes

Response Time	<= 0.1 ms from state 0 to 1, <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0, <= 0.6 ms from state 1 to 0<= 0.1 ms from state 0 to 1, <= 0.1 ms from state 0 to 1, <= 0.6 ms from state 1 to 0, <= 0.6 ms from state 1 to 0
Local Publishable Date	2026-08-06
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Current State 1 Guaranteed	2.9 mA DC
Product Or Component Type	plug-in solid state relay
Range Of Product	Advantys Telefast ABE7
Returnability	No
Voltage State 0 Guaranteed	3.8 V DC
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1846
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Current State 0 Guaranteed	0.4 mA DC
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 4
Relay Type	output relay
Sustainable Packaging	No
Voltage State 1 Guaranteed	18.6 V DC
Width Pitch Dimension	12 mm
Customs Code	8536410030

Environment Attributes Main

Product Compatibility	ABE7R16T332, ABE7P16T330E, ABE7P16T330, ABE7P16T318, ABE7R16T330, ABE7P16T334, ABE7P16T318E
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1409004EN

Take Back	No
China Rohs Regulation	X
Environmental Disclosure	ENVPEP1409004EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
