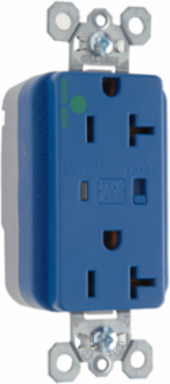

Pass & Seymour PT8300BLSP Hospital Grade Extra Heavy Duty Surge Protective Duplex Receptacle 60V
- MPN: PT8300BLSP
- UPC: 785007019513
- PPN: P-S-PT8300BLSP
- UNSPSC: 39121406
CAD
$127.39
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hospital Grade Extra Heavy Duty Surge Protective Duplex Receptacle 60V
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Crimped and welded contacts.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Product Line | Pass & Seymour |
| Standard | CSA Listed; cUL; UL Listed; RoHS; FSUL |
| Environmental Conditions | UL94 V2 |
| Warranty Type | 1-Year Limited Warranty |
| Voltage | 125.0 V |
| Outlet Type | Hospital Grade; Surge Protected |
| Wire Size | 14 - 10 AWG |
| NEMA Configuration Code | 5-20R |
| Number of Wires | 3.0 |
| Features | Brass Mounting Strap; Audible Alarm; Indicator Lights; Surge Protection |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| Color | Blue |
|---|---|
| Amperage | 20.0 A |
| Phase | Single |
| Special Features | PlugTail® Hospital Grade Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). |
| Wall Plate Included | No |
| Indoor/Outdoor | Indoor |
| Connection Location | Back Only |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Operating Temperature Max | 60.0 °C |
| Wire Connection Type | PlugTail |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
