Pass & Seymour PTTR5262WSP PlugTail® Surge Protective Duplex Receptacle, Tamper-Resistant, White
- MPN: PTTR5262WSP
- UPC: 785007019568
- PPN: P-S-PTTR5262WSP
- UNSPSC: 39121406
CAD
$121.84
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

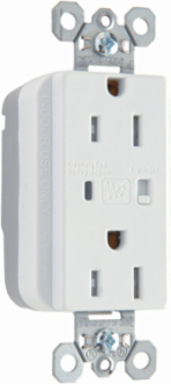

PlugTail® Surge Protective Duplex Receptacle, Tamper-Resistant, White
Features
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Plated steel wrap strap design for maximum durability and corrosion resistance.
- No exposed terminals create a finger safe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
- Crimped and welded contacts.
- Large brass contacts snugly terminate on device blade terminals.
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
- Pre-wired with one welded pre-stripped wire lead to facilitate switched receptacle circuit applications.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Product Line | Pass & Seymour |
| Standard | CSA Listed; cUL; UL Listed; RoHS; FSUL |
| Environmental Conditions | UL94 V2 |
| NEMA Configuration Code | 5-15R |
| Indoor/Outdoor | Indoor |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature | -40°-60°C |
| Outlet Type | Tamper-Resistant |
| Features | Indicator Lights; Surge Protection; Audible Alarm |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| Color | White |
|---|---|
| Amperage | 15.0 A |
| Phase | Single |
| Connection Location | Back Only |
| Is Tamper-Resistant | Yes |
| Wall Plate Included | No |
| Operating Temperature Min | -40.0 °C |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Warranty Type | 1-Year Limited Warranty |
| Wire Size | 12 AWG |
| Wire Connection Type | PlugTail |
