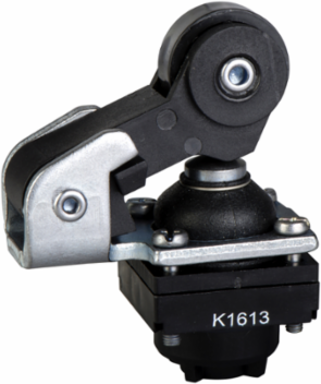

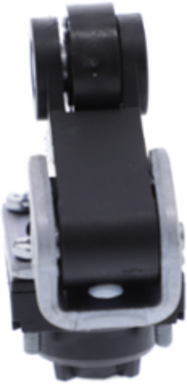

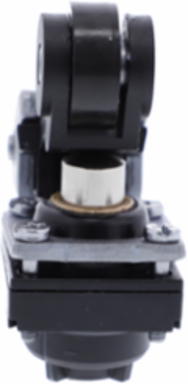

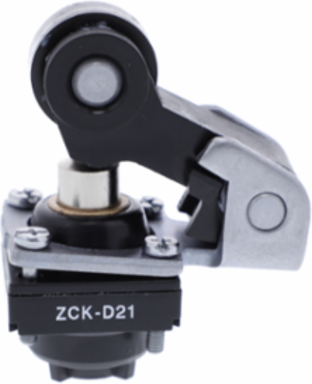

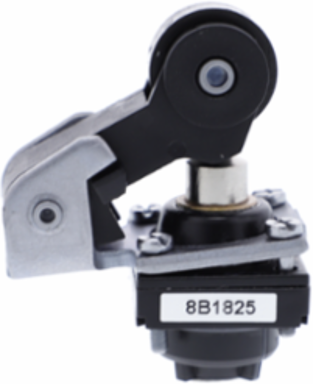

Telemecanique Sensors ZCKD21 Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever plunger horizontal direction
- MPN: ZCKD21
- PPN: TES-ZCKD21
- UNSPSC: 39122213
CAD
$45.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCK standard, classic format head has a thermoplastic roller lever plunger. It can be matched with any body from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 1 direction |
|---|---|
| Movement Of Operating Head | rotary || linear |
| Type Of Operator | roller lever plunger spring return thermoplastic |
| Associated Body | ZCKMD35 || ZCKMD31H7 || ZCKL5H7 || ZCKLD35 || ZCKMD39H29 || ZCKLD31H7 || ZCKLD35H7 || ZCKM6H7 || ZCKL6 || ZCKM8H29 || ZCKM7H29 || ZCKLD39H7 || ZCKMD37 || ZCKMD35H7 || ZCKLD37 || ZCKM1 || ZCKL1H7 || ZCKLD39 || ZCKMD39H7 || ZCKMD31H29 || ZCKM5H7 || ZCKL6H7 || ZCKMD31 || ZCKM7H7 || ZCKM9 || ZCKMD37H29 || ZCKM6 || ZCKM1H29 || ZCKL1 || ZCKLD37H7 || ZCKM6H29 || ZCKM8 || ZCKM1H7 || ZCKM7 || ZCKL5 || ZCKM5 || ZCKM9H29 || ZCKM5H29 || ZCKL8 || ZCKL8H7 || ZCKLD31 || ZCKL7H7 || ZCKMD37H7 || ZCKMD35H29 || ZCKMD39 || ZCKL7 || ZCKM8H7 |
| Device Short Name | ZCKD |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKM || XCKL |
| Head Type | plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | plastic |
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
