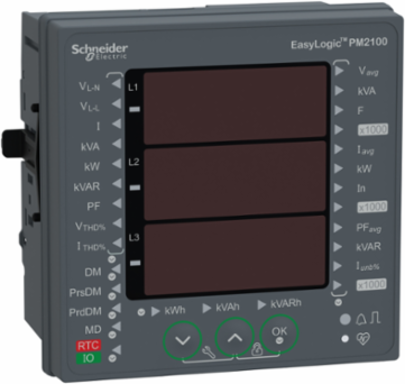

Schneider Electric METSEPM2130 EasyLogic PM2130, Power & Energy meter, up to the 31st harmonic, LED display, RS485, class 0.5S
- MPN: METSEPM2130
- PPN: SCH-METSEPM2130
CAD
$433.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EasyLogic PM2130, Power & Energy meter, up to the 31st harmonic, LED display, RS485, class 0.5S
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, India, Sweden, Singapore, United States
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V
- Communication Service
- remote monitoring
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Display Color
- red
Complementary Attributes
- Line Rated Current
- 1 A, 5 A
- Maximum Power Consumption In W
- 3.3 W power lines (AC))3.3 W 277 V power lines (DC))
Maximum Power Consumption In Va8 VA 277 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- power logs, time stamping, energy consumption logs, min/max for 8 parameters
- Electrical Insulation Class
- class II, double insulation
- Measurement Accuracy
- apparent power +/- 0.5 %, active energy +/- 0.5 %reactive energy +/- 1 %, active power +/- 0.5 %, voltage +/- 0.5 %power factor +/- 0.01, current +/- 0.5 %frequency +/- 0.05 %
- Metering Type
- peak demand currents, active power P, P1, P2, P3, demand power P, Q, S, reactive power Q, Q1, Q2, Q3, apparent power S, S1, S2, S3, active, reactive, apparent energy (signed, four quadrant), voltage U, U21, U32, U13, V, V1, V2, V3, current I, I1, I2, I3, calculated neutral current, unbalance current, peak demand power PM, QM, SM
- Power Quality Analysis
- total harmonic distortion, up to the 31st harmonic
- Certificate Agency
- CE conforming to IEC 61010-1cULus conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick
- Ride-through Time
- 50 ms 120 V AC typical, 50 ms 230 V AC typical50 ms 125 V DC typical
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7697558689245027, 0.8 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 19 kg CO2 eq., 18.77459862318305
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310091EN_Web, PLSED310197EN_Web, PLSED310198EN_Web
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- 3 x button
- Device Short Name
- PM2130
- Display Type
- 7 segments LED
- Energy Efficiency Optimized
- False
- Frequency Measurement Range
- 45-65 Hz
- Local Signalling
- Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)Green LED module operation and integrated communication
- Measurement Current
- 5-6000 mA
- Messages Display Capacity
- 3 fields of 4 characters
- Mounting Position
- vertical
- Overvoltage Category
- III
- Product Name
- EasyLogic PM2100
- Provided Equipment
- 1 x Installation guide
- Refresh Time
- configurable from 1 to 60 min
- Sampling Rate
- 64 samples/cycle
- Software Version
- v6.2.4
- Tamperproof Of Settings
- protected by access code
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Supply Voltage Num 7 Supply Voltage Num
- 100...277 V
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To consume electrical power, the conditions under which the product is implemented and used must be considered. The maximum power consumption is 8 VA at 277 V AC, with a line rated current of 1 A to 5 A and a network frequency of 50 Hz to 60 Hz.& 10The electrical power consumed by the EasyLogic PM2000 range is as follows:& 10In active mode 15% of the time, with a power use of 3.3W.& 10In stand-by mode 65% of the time, with a power use of 2.1W.& 10In sleep mode 20% of the time, with a power use of 1.2W.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 9
- Width Nominal
- 96 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationsub billing, power monitoring
Information Displayeddemand power present value), demand past value), demand present value), demand power past value), voltage, current, frequency, energy consumption, harmonic distortion, power factor, active power, apparent power, reactive power, unbalanced in %
Measurement Categorycategory III 480-480 V, category II 480-600 V
Network Frequency50 Hz, 60 Hz
Type Of Measurementapparent power min/max, total, active and reactive power min/max, totalcurrent min/max, avg, voltage min/max, avg, frequency min/max, avgtotal current harmonic distortion THD (I) per phase, total voltage harmonic distortion THD (U) per phase, power factor min/max, avgapparent energy total, active and reactive energy total
Connections - Terminalscurrent transformer screw connection bottom) 6, voltage inputs screw connection top) 4
Carbon Footprint Of The Distribution Phase [A4]0.228162140149114, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.03213279501765444
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]137 kg CO2 eq., 136.7068143903623
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1510002_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2219
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodePM2130
Cybersecurityenable/disable communication ports
Display Digits12 - 14.2 mm
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11emission tests conforming to FCC Part 15 class A
Flame RetardanceV-0 conforming to UL 94
Function Availablereal time clock
Materialpolycarbonate
Measurement Voltage35-480 V AC 50/60 Hz between phases20-277 V AC 50/60 Hz between phase and neutral480-999000 V AC 50/60 Hz with external VT
Mounting Modeclip-on
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
RangeEasyLogic
ReturnabilityYes
Service Life7 year(s)
Sustainable PackagingNo
Total Lifecycle Carbon Footprint157 kg CO2 eq.
Display Colorred
Pep CodeENVPEP1510002EN
Pep Verification Date2025-07-27
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal96 mm
[Us] Rated Supply Voltage80...277 V AC 45...65 Hz +/- 10 %100...277 V DC +/- 10 %
Package Weight(Lbs)407.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 156.5114638176366
- Circularity Profile
- ENVEOLI1510002_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1510002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-10-60 °C-10-60 °C
Environmental DisclosureENVPEP1510002EN
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C
Pep Verification Date2025-07-27
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power meter
Provided Equipment1 x Installation guide
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 0
Input Attributes
- Analogue Input Type
- current (impedance 5 MOhm)
Number Of Inputs0
