Schneider Electric METSEPM2120 EasyLogic PM2120, Power & Energy meter, up to the 15th harmonic, LED display, RS485, class 1
- MPN: METSEPM2120
- PPN: SCH-METSEPM2120
CAD
$342.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

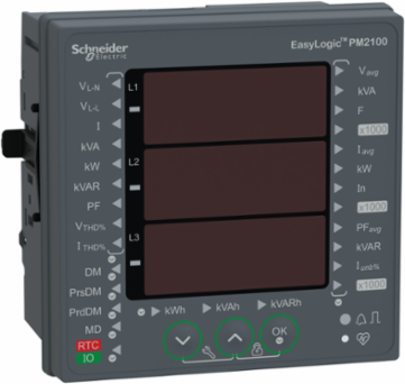

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, France, India, Singapore, United States
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V
- Communication Service
- remote monitoring
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Display Color
- red
Complementary Attributes
- Line Rated Current
- 1 A, 5 A
- Maximum Power Consumption In Va
- 6 VA 277 V AC
Maximum Power Consumption In W3.3 W power lines (AC)), 2 W 277 V power lines (DC))
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- time stamping, min/max for 8 parameters
- Electrical Insulation Class
- double insulation, class II
- Measurement Accuracy
- apparent power +/- 1 %, active energy +/- 1 %, reactive energy +/- 1 %, active power +/- 1 %voltage +/- 0.5 %power factor +/- 0.01, current +/- 0.5 %frequency +/- 0.05 %
- Metering Type
- current I, I1, I2, I3, peak demand power PM, QM, SM, active, reactive, apparent energy (signed, four quadrant), peak demand currents, active power P, P1, P2, P3, calculated neutral current, voltage U, U21, U32, U13, V, V1, V2, V3, unbalance current, reactive power Q, Q1, Q2, Q3, demand power P, Q, S, apparent power S, S1, S2, S3
- Power Quality Analysis
- total harmonic distortion, up to the 15th harmonic
- Certificate Agency
- CE conforming to IEC 61010-1cULus conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick
- Connections - Terminals
- current transformer screw connection bottom) 6, voltage inputs screw connection top) 4
- Carbon Footprint Of The Distribution Phase [A4]
- 0.18252971211929123, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.025706236014123553
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 137 kg CO2 eq., 136.70681439036227
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1510002_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2219
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- PM2120
- Cybersecurity
- enable/disable communication ports
- Display Digits
- 12 - 14.2 mm
- Electromagnetic Compatibility
- electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11emission tests conforming to FCC Part 15 class A
- Flame Retardance
- V-0 conforming to UL 94
- Function Available
- real time clock
- Material
- polycarbonate
- Measurement Voltage
- 35-480 V AC 50/60 Hz between phases20-277 V AC 50/60 Hz between phase and neutral480-999000 V AC 50/60 Hz with external VT
- Mounting Mode
- clip-on
- Mounting Support
- framework
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- power meter
- Range
- EasyLogic
- Returnability
- Yes
- Service Life
- 7 year(s)
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 153 kg CO2 eq.
- Display Color
- red
- Pep Code
- ENVPEP1510002EN
- Pep Verification Date
- 2025-07-27
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; India, IN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 9
- Width Nominal
- 96 mm
- Package Weight(Lbs)
- 403.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationsub billing, power monitoring
Information Displayeddemand power present value), demand past value), demand present value), demand power past value), voltage, current, frequency, energy consumption, harmonic distortion, power factor, active power, apparent power, reactive power, unbalanced in %
Measurement Categorycategory III 480-480 V, category II 480-600 V
Network Frequency50 Hz, 60 Hz
Type Of Measurementapparent power min/max, total, active and reactive power min/max, totalcurrent min/max, avg, voltage min/max, avg, frequency min/max, avgtotal current harmonic distortion THD (I) per phase, total voltage harmonic distortion THD (U) per phase, power factor min/max, avgapparent energy total, active and reactive energy total
[Us] Rated Supply Voltage44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 %
Ride-through Time100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6158046951396021, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 15.01967889854644
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310091EN_Web, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date2025-06-18
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Type3 x button
Device Short NamePM2120
Display Type7 segments LED
Energy Efficiency OptimizedFalse
Frequency Measurement Range45-65 Hz
Local SignallingRed LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)Green LED module operation and integrated communication
Measurement Current5-6000 mA
Messages Display Capacity3 fields of 4 characters
Mounting Positionvertical
Overvoltage CategoryIII
Product NameEasyLogic PM2100
Provided Equipment1 x Installation guide
Refresh Timeconfigurable from 1 to 60 min
Sampling Rate64 samples/cycle
Software Versionv6.2.4
Tamperproof Of Settingsprotected by access code
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage Num 7 Supply Voltage Num44...277 V
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo consume electrical power, the conditions under which the product is implemented and used must be considered. The maximum power consumption is 8 VA at 277 V AC, with a line rated current of 1 A to 5 A and a network frequency of 50 Hz to 60 Hz.& 10The electrical power consumed by the EasyLogic PM2000 range is as follows:& 10In active mode 15% of the time, with a power use of 3.3W.& 10In stand-by mode 65% of the time, with a power use of 2.1W.& 10In sleep mode 20% of the time, with a power use of 1.2W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh183.96
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global
Height Nominal96 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9028300000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 152.55053393218174
- Circularity Profile
- ENVEOLI1510002_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Relative Humidity
- 5-95 % 50-50 °C
- Pep Verification Date
- 2025-07-27
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-10-60 °C-10-60 °C
Environmental DisclosureENVPEP1510002EN
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Without Single Use PlasticNo
RecyclabilityProduct designed for enhanced end-of-life management and recycling
Pep CodeENVPEP1510002EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- power meter
Provided Equipment1 x Installation guide
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 0
Input Attributes
- Analogue Input Type
- current (impedance 5 MOhm)
Number Of Inputs0
Batteries & Runtime Attributes
- Removable Battery
- No
