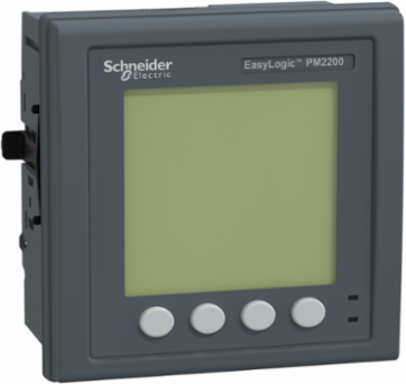

Schneider Electric METSEPM2220 EasyLogic PM2220, Power & Energy meter, up to the 15th harmonic, LCD display, RS485, class 1
- MPN: METSEPM2220
- PPN: SCH-METSEPM2220
CAD
$316.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion and Individual harmonics up to 15th Harmonic order. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. It is having RS485 communication port over Modbus RTU protocol. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, India, United States
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V
- Communication Service
- remote monitoring
Communication Port Supportscrew terminal block RS485
Physical Attributes
- Display Color
- monochrome
Complementary Attributes
- Line Rated Current
- 1 A, 5 A
- Maximum Power Consumption In Va
- 6 VA 277 V AC
Maximum Power Consumption In W3.3 W power lines (AC)), 2 W 277 V power lines (DC))
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Data Recording
- time stamping, min/max for 8 parameters
- Electrical Insulation Class
- double insulation, class II
- Measurement Accuracy
- apparent power +/- 1 %, active energy +/- 1 %, reactive energy +/- 1 %, active power +/- 1 %voltage +/- 0.5 %power factor +/- 0.01, current +/- 0.5 %frequency +/- 0.05 %
- Metering Type
- active, reactive, apparent energy (signed, four quadrant), current I, I1, I2, I3, peak demand currents, peak demand power PM, QM, SM, unbalance current, active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, demand power P, Q, S, voltage U, U21, U32, U13, V, V1, V2, V3, apparent power S, S1, S2, S3, calculated neutral current
- Power Quality Analysis
- total harmonic distortion, up to the 15th harmonic
- User Language
- Spanish, French, English, Russian, Portuguese, German, Chinese
- [Us] Rated Supply Voltage
- 44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 %
- Ride-through Time
- 100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6773501992981074, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 11.469745047433399
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=.pdf, PLSED310091EN_Web, PLSED310197EN_Web, PLSED310198EN_Web
- Local Publishable Date
- 2025-06-18
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1510004_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2219
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- PM2220
- Cybersecurity
- enable/disable communication ports
- Display Resolution
- 128 x 128 pixels
- Electromagnetic Compatibility
- electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11emission tests conforming to FCC Part 15 class A
- Flame Retardance
- V-0 conforming to UL 94
- Function Available
- real time clock
- Material
- polycarbonate
- Measurement Voltage
- 35-480 V AC 50/60 Hz between phases20-277 V AC 50/60 Hz between phase and neutral480-999000 V AC 50/60 Hz with external VT
- Mounting Position
- vertical
- Overvoltage Category
- III
- Product Name
- EasyLogic PM2200
- Provided Equipment
- 1 x Installation guide
- Refresh Time
- configurable from 1 to 60 min
- Sampling Rate
- 64 samples/cycle
- Software Version
- v6.2.2
- Tamperproof Of Settings
- protected by access code
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Supply Voltage Num 7 Supply Voltage Num
- 44...277 V
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- PM2230 is a power and energy meter that provides functions such as measuring electrical parameters, monitoring power quality, and enabling energy management during 10 years. It helps users analyze and optimize energy usage while ensuring power quality and reliability.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 169.506
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Thailand, TH
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Thailand, TH
- Height Nominal
- 96 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9028300000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Device Applicationpower monitoring, sub billing
Information Displayeddemand power present value)demand past value), demand present value), demand power past value), voltage, current, frequency, energy consumption, harmonic distortion, power factor, active power, apparent power, reactive power, unbalanced in %, harmonic amplitude
Measurement Categorycategory III 480-480 V, category II 480-600 V
Network Frequency50 Hz, 60 Hz
Type Of Measurementapparent power min/max, total, active and reactive power min/max, totalcurrent min/max, avg, voltage min/max, avg, frequency min/max, avgtotal current harmonic distortion THD (I) per phase, total voltage harmonic distortion THD (U) per phase, power factor min/max, avgapparent energy total, active and reactive energy total
Certificate AgencyCE conforming to IEC 61010-1cULus conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick
Connections - Terminalscurrent transformer screw connection bottom) 6, voltage inputs screw connection top) 4
Carbon Footprint Of The Distribution Phase [A4]1.890033360398359, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.03774647548545719
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]115 kg CO2 eq., 115.1788985041515
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionDPIBS
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Control Type4 x button
Device Short NamePM2220
Display TypeBacklit LCD
Energy Efficiency OptimizedFalse
Frequency Measurement Range45-65 Hz
Local SignallingRed LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)Green LED module operation and integrated communication
Measurement Current5-6000 mA
Mounting Modeclip-on
Mounting Supportframework
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typepower meter
RangeEasyLogic
ReturnabilityYes
Service Life7 year(s)
Sustainable PackagingNo
Total Lifecycle Carbon Footprint129 kg CO2 eq.
Display Colormonochrome
Pep CodeENVPEP1510004EN
Pep Verification Date2024-09-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Thailand, TH
Recyclability Potential In %14
Width Nominal96 mm
Package Weight(Lbs)356.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 129.2537735867668
- Circularity Profile
- ENVEOLI1510004_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1510004EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-10-60 °C-10-60 °C
Environmental DisclosureENVPEP1510004EN
Ip Degree Of ProtectionIP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % 50-50 °C
Pep Verification Date2024-09-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power meter
Provided Equipment1 x Installation guide
ETIM
- ETIM 8
- EC002301
ETIM 9EC002301
Output Attributes
- Number Of Outputs
- 0
Input Attributes
- Analogue Input Type
- current (impedance 5 MOhm)
