Schneider Electric METSEPM2210 EasyLogic PM2210, Power & Energy meter, Total Harmonic, LCD display, Pulse, class 1
- MPN: METSEPM2210
- PPN: SCH-METSEPM2210
CAD
$287.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

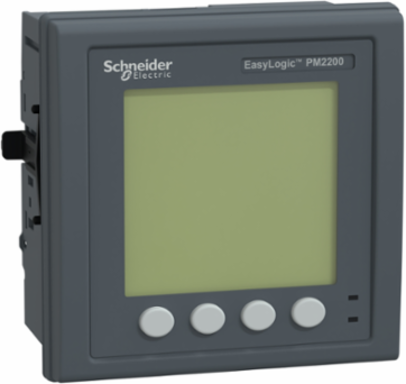

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having backlit LCD display of 128 by 128 pixels. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | POP |
|---|
| Communication Service | remote monitoring |
|---|
Physical Attributes
| Display Color | monochrome |
|---|
Complementary Attributes
| Line Rated Current | 1 A, 5 A |
|---|---|
| Impulse Duration | 20 ms |
| Maximum Power Consumption In W | 3.3 W power lines (AC)), 2 W 277 V power lines (DC)) |
|---|---|
| Maximum Power Consumption In Va | 6 VA 277 V AC |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | RESIDENTIAL, COMMERCIAL, INDUSTRIAL |
| Device Application | sub billing, power monitoring |
| Information Displayed | demand power present value)demand past value), demand present value), demand power past value), voltage, current, frequency, energy consumption, harmonic distortion, power factor, active power, apparent power, reactive power, unbalanced in %, harmonic amplitude |
| Measurement Category | category III 480-480 V, category II 480-600 V |
| Network Frequency | 60 Hz, 50 Hz |
| User Language | German, English, Chinese, Russian, Spanish, Portuguese, French |
| [Us] Rated Supply Voltage | 44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 % |
| Ride-through Time | 100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.6773501992981074, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 11 kg CO2 eq., 11.469745047433399 |
| Other Technical Guide Name | PLSED310091EN_Web, PLSED310197EN_Web, PLSED310198EN_Web |
| Local Publishable Date | 2025-06-18 |
| Stocking Flag | N |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1510004_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2219 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | PM2210 |
| Cybersecurity | enable/disable communication ports |
| Display Resolution | 128 x 128 pixels |
| Electromagnetic Compatibility | electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11emission tests conforming to FCC Part 15 class A |
| Flame Retardance | V-0 conforming to UL 94 |
| Local Signalling | Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)Green LED module operating (RUN) |
| Measurement Current | 5-6000 mA |
| Mounting Mode | clip-on |
| Mounting Support | framework |
| Power Quality Analysis | total harmonic distortion |
| Product Name | EasyLogic PM2200 |
| Provided Equipment | 1 x Installation guide |
| Refresh Time | configurable from 1 to 60 min |
| Sampling Rate | 64 samples/cycle |
| Software Version | v6.2.2 |
| Tamperproof Of Settings | protected by access code |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Supply Voltage Num 7 Supply Voltage Num | 44...277 V |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | PM2230 is a power and energy meter that provides functions such as measuring electrical parameters, monitoring power quality, and enabling energy management during 10 years. It helps users analyze and optimize energy usage while ensuring power quality and reliability. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 169.506 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Thailand, TH |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Thailand, TH |
| Height Nominal | 96 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9028300000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Residential, Commercial, Industrial |
| Electrical Insulation Class | class II, double insulation |
| Measurement Accuracy | apparent power +/- 1 %, active energy +/- 1 %, reactive energy +/- 1 %, active power +/- 1 %voltage +/- 0.5 %power factor +/- 0.01, current +/- 0.5 %frequency +/- 0.05 % |
| Metering Type | voltage U, U21, U32, U13, V, V1, V2, V3, unbalance current, calculated neutral current, apparent power S, S1, S2, S3, peak demand currents, current I, I1, I2, I3, active, reactive, apparent energy (signed, four quadrant), active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, peak demand power PM, QM, SM, demand power P, Q, S |
| Type Of Measurement | apparent power min/max, total, active and reactive power min/max, totalcurrent min/max, avg, voltage min/max, avg, frequency min/max, avgtotal current harmonic distortion THD (I) per phase, total voltage harmonic distortion THD (U) per phase, power factor min/max, avgapparent energy total, active and reactive energy total |
| Certificate Agency | CE conforming to IEC 61010-1cULus conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick |
| Connections - Terminals | current transformer screw connection bottom) 6, voltage inputs screw connection top) 4 |
| Carbon Footprint Of The Distribution Phase [A4] | 1.890033360398359, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.03774647548545719 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 115 kg CO2 eq., 115.1788985041515 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | DPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | 4 x button |
| Device Short Name | PM2210 |
| Display Type | Backlit LCD |
| Energy Efficiency Optimized | False |
| Frequency Measurement Range | 45-65 Hz |
| Material | polycarbonate |
| Measurement Voltage | 35-480 V AC 50/60 Hz between phases20-277 V AC 50/60 Hz between phase and neutral480-999000 V AC 50/60 Hz with external VT |
| Mounting Position | vertical |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | power meter |
| Range | EasyLogic |
| Returnability | Yes |
| Service Life | 7 year(s) |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 129 kg CO2 eq. |
| Display Color | monochrome |
| Pep Code | ENVPEP1510004EN |
| Pep Verification Date | 2024-09-03 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | India, IN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Thailand, TH |
| Recyclability Potential In % | 14 |
| Width Nominal | 96 mm |
| Package Weight(Lbs) | 353.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 129.2537735867668 |
| Circularity Profile | ENVEOLI1510004_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1510004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -10-60 °C-10-60 °C |
| Environmental Disclosure | ENVPEP1510004EN |
| Ip Degree Of Protection | IP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % 50-50 °C |
| Pep Verification Date | 2024-09-03 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | power meter |
|---|
| Provided Equipment | 1 x Installation guide |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 1 pulse |
|---|
| Output Voltage | 20 ms 5...40 V DC, 20 mA 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
|---|
Input Attributes
| Analogue Input Type | current (impedance 5 MOhm) |
|---|
| Number Of Inputs | 0 |
|---|
