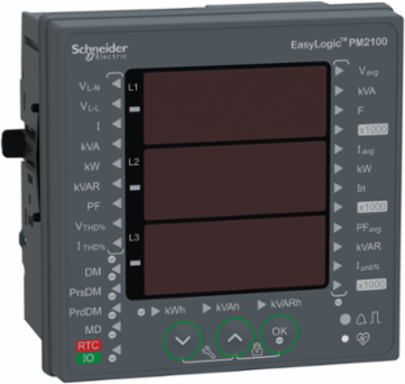

Schneider Electric METSEPM2110 EasyLogic PM2110, Power & Energy meter, Total Harmonic, LED display, Pulse, class 1

MPN: METSEPM2110
PPN: SCH-METSEPM2110

$312.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This device is a panel mount or flush mount power meter with a 96mm by 96mm bezel size having 3 rows of bright red 4 digits 14.2 mm height LED display. The meter measures active energy as per accuracy class Class 1.0 complying to IEC 62053-21 standard with sampling rate of 64 samples per cycle. Able to measures all three vectors of power and energy such as Active, Apparent & Reactive beside Voltages, Current, Frequency and Power Factor. Plus the total Harmonic Distortion for both current and volrage on per phase basis. The meter will function in either 50Hz or 60Hz network frequency and accepts universal control power voltages ranging from 44 to 300 V Line to Neutral AC or DC voltages. Rated current for this meter is either 1A or 5A input. it supports up to 13 different types of wiring schemes under Single Phase, Two Phase or Three Phase configuration types. The range of measurement voltage between Phases is 35 to 480 V Line to Line AC at 45 to 65 Hz while it is 20 to 277 V between Line and Neutral. The meter also has one digital pulse output for any energy parameters congigurable to different energy scaling. Product dimensions are as follows: width 3.78 in (96 mm), depth 2.16 in (54 mm), height 3.78 in (96 mm) and product weight 10.58 oz (300 g).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Argentina, Brazil, France, India, Sweden, Singapore, United States

Communications & Management Attributes

Communication Port Protocol	POP

Communication Service	remote monitoring

Physical Attributes

Display Color	red

Complementary Attributes

Line Rated Current	5 A, 1 A
Impulse Duration	20 ms

Maximum Power Consumption In W	3.3 W power lines (AC)), 2 W 277 V power lines (DC))
Maximum Power Consumption In Va	6 VA 277 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	RESIDENTIAL, COMMERCIAL, INDUSTRIAL
Device Application	power monitoring, sub billing
Information Displayed	demand power present value), demand past value), demand present value), demand power past value), voltage, current, frequency, energy consumption, harmonic distortion, power factor, active power, apparent power, reactive power, unbalanced in %
Measurement Category	category III 480-480 V, category II 480-600 V
Network Frequency	60 Hz, 50 Hz
Certificate Agency	CE conforming to IEC 61010-1cULus conforming to UL 61010-1, cULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick
Connections - Terminals	current transformer screw connection bottom) 6, voltage inputs screw connection top) 4
Carbon Footprint Of The Distribution Phase [A4]	0.24945727322969796, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.03513185588596885
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	137 kg CO2 eq., 136.70681439036227
Local Data Status	Publishable
Return Indicator	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	3 x button
Device Short Name	PM2110
Display Type	7 segments LED
Energy Efficiency Optimized	False
Frequency Measurement Range	45-65 Hz
Material	polycarbonate
Measurement Voltage	35-480 V AC 50/60 Hz between phases20-277 V AC 50/60 Hz between phase and neutral480-999000 V AC 50/60 Hz with external VT
Mounting Mode	clip-on
Mounting Support	framework
Power Quality Analysis	total harmonic distortion
Product Name	EasyLogic PM2100
Provided Equipment	1 x Installation guide
Refresh Time	configurable from 1 to 60 min
Sampling Rate	64 samples/cycle
Software Version	v6.2.4
Tamperproof Of Settings	protected by access code
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage Num 7 Supply Voltage Num	44...277 V
Database Version	2024-01
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To consume electrical power, the conditions under which the product is implemented and used must be considered. The maximum power consumption is 8 VA at 277 V AC, with a line rated current of 1 A to 5 A and a network frequency of 50 Hz to 60 Hz.& 10The electrical power consumed by the EasyLogic PM2000 range is as follows:& 10In active mode 15% of the time, with a power use of 3.3W.& 10In stand-by mode 65% of the time, with a power use of 2.1W.& 10In sleep mode 20% of the time, with a power use of 1.2W.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	183.96
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global
Height Nominal	96 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	9028300000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Residential, Commercial, Industrial
Electrical Insulation Class	double insulation, class II
Measurement Accuracy	apparent power +/- 1 %, active energy +/- 1 %, reactive energy +/- 1 %, active power +/- 1 %voltage +/- 0.5 %power factor +/- 0.01, current +/- 0.5 %frequency +/- 0.05 %
Metering Type	peak demand power PM, QM, SM, apparent power S, S1, S2, S3, current I, I1, I2, I3, reactive power Q, Q1, Q2, Q3, calculated neutral current, voltage U, U21, U32, U13, V, V1, V2, V3, peak demand currents, unbalance current, demand power P, Q, S, active power P, P1, P2, P3, active, reactive, apparent energy (signed, four quadrant)
Type Of Measurement	total current harmonic distortion THD (I) per phase, total voltage harmonic distortion THD (U) per phaseapparent energy total, active and reactive energy total, apparent power total, active and reactive power totalcurrent average, voltage average, frequency average, power factor average
[Us] Rated Supply Voltage	44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 %
Ride-through Time	100 ms 120 V AC typical400 ms 230 V AC typical, 50 ms 125 V DC typical
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.8415997500241228, 0.8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	21 kg CO2 eq., 20.526894494680132
Other Technical Guide Name	PLSED310091EN_Web, PLSED310197EN_Web, PLSED310198EN_Web
Local Publishable Date	2025-06-18
Stocking Flag	N
Serviceability	Yes
Field Service Division	DPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1510002_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2219
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	PM2110
Cybersecurity	enable/disable communication ports
Display Digits	12 - 14.2 mm
Electromagnetic Compatibility	electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11emission tests conforming to FCC Part 15 class A
Flame Retardance	V-0 conforming to UL 94
Local Signalling	Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)Green LED module operating (RUN)
Measurement Current	5-6000 mA
Messages Display Capacity	3 fields of 4 characters
Mounting Position	vertical
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	power meter
Range	EasyLogic
Returnability	Yes
Service Life	7 year(s)
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	158 kg CO2 eq.
Display Color	red
Pep Code	ENVPEP1510002EN
Pep Verification Date	2025-07-27
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	9
Width Nominal	96 mm
Package Weight(Lbs)	402.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	158.3598977641822
Circularity Profile	ENVEOLI1510002_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1510002EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-10-60 °C-10-60 °C
Environmental Disclosure	ENVPEP1510002EN
Ip Degree Of Protection	IP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % 50-50 °C
Pep Verification Date	2025-07-27
Psr Version	PSR-0005-ed3-EN-2023 06 06
