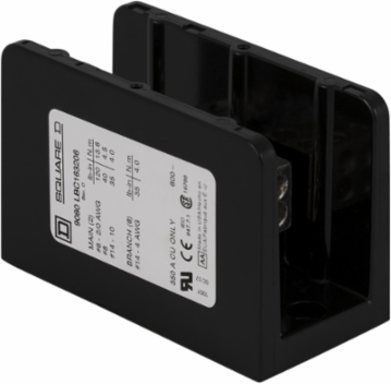

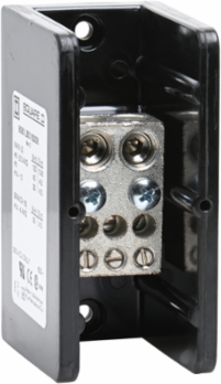

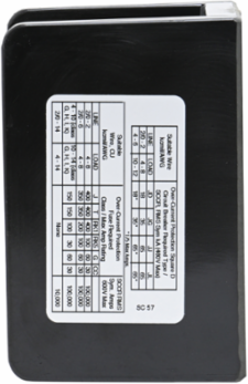

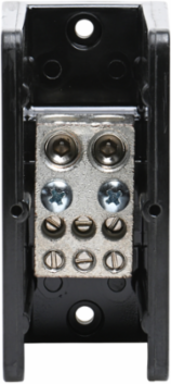

Square D 9080LBC163206 Power Distribution Block 1 Pole 2 Line 6 Load 350A 600V
- MPN: 9080LBC163206
- UPC: 785901097624
- PPN: SCH-9080LBC163206
CAD
$143.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one 14 to 2/0 copper wire. The load side lug is rated to accept one 14 to 4 copper wire. The lugs are made of copper. The lugs are rated for 350 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States

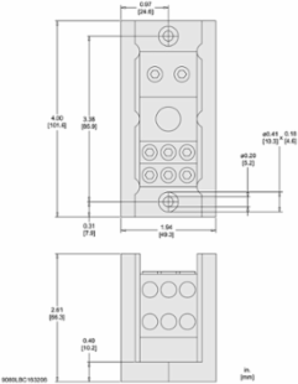

Depth2.61 in
Physical Attributes
- Wire Stripping Length
- load: 0.38 in for top connectionload: 0.75 in for bottom connection, line: 0.75 in
Complementary Attributes
- Line Rated Current
- 350-350 A copper
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Number Of Cables
- line 2 , 14 AWG...2/0 AWG, copper, load 6 , 14 AWG...4 AWG, copper
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Support
- surface mount
- Number Of Terminals
- 2 load6 line
- Product Or Component Type
- Power Distribution Block
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 1.94 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Short-circuit Current
- 65 kA
- Package Weight(Lbs)
- 331.122 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCE, CSA file 70361 class 6228 01, UL recognized E60616 CCN XCFR2
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Electrical Connectiontin plated copper lugs
Materialphenolic: block
Number Of Poles1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9080LB
Sustainable PackagingNo
Height Nominal4 in
[Ics] Rated Service Breaking Capacity100 kA UL 508 A
Connections - Terminalsline lug 40 lbf.in 8 AWG copperline lug 35 lbf.in 14 AWG...10 AWG copperline lug 120 lbf.in 6 AWG...2/0 AWG copperload lug 35 lbf.in 14 AWG...4 AWG copper
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- 9080LB31
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-40-302 °F, -40-302 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Power Distribution Block
Range Of Product9080LB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
