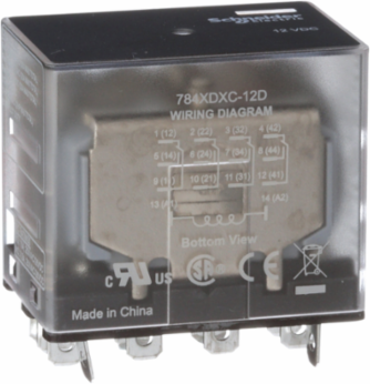

Schneider Electric 784XDXC-12D Power relay, SE Relays, 15A, 4PDT, 12 VDC, clear cover
Schneider Electric 784XDXC-12D Power relay, SE Relays, 15A, 4PDT, 12 VDC, clear cover
- MPN: 784XDXC-12D
- PPN: SCH-784XDXC-12D
- UNSPSC: 39122324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$36.57/ EA
Description
The SE Relays 784 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 12VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Specifications
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50/60 Hz, 1 hp 277 V AC 50/60 Hz
- IE Rated Operational Current
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Minimum Switching Current10 mA 17 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Operating Time
- 20 ms operating, 20 ms tripping
- IE Rated Operational Current
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- WD Status
- 5 - INITIALIZED WITH DataSCAN OK (Migration)
- Function Option
- Standard
- Package Weight Lbs
- 80 g
- Power Consumption In W
- 1.6-1.6 W DC
- Product Or Component Type
- power relay
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Connections Terminals
- Faston terminals
- Pep Code
- ENVPEP2403024EN
- Product Manager
- ZHEN YIN
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Vibration Resistance+/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), 3 gn 35-150 Hz)
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function Option IdSTANDARD
Electrical Durability100000 cycles resistive
Power Consumption In VA2.5-2.5 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance15 gn in operation
Voltage Range0.8...1.1 Un AC/DC
Relationship TypeCompatible relationship
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
Input Voltage12 V DC
