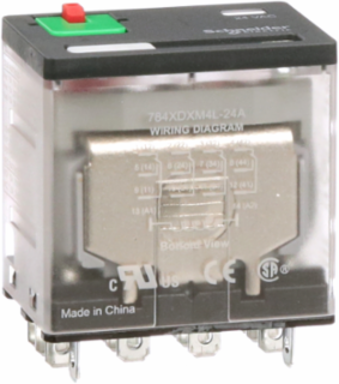

Schneider Electric 784XDXM4L-24A Power relay, SE Relays, 15A, 4PDT, 24 VAC, cover with locking push button and LED
Schneider Electric 784XDXM4L-24A Power relay, SE Relays, 15A, 4PDT, 24 VAC, cover with locking push button and LED
- MPN: 784XDXM4L-24A
- PPN: SCH-784XDXM4L-24A
- UNSPSC: 39122324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$42.08/ EA
Description
The SE Relays 784 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Features
- Switching current is ideal choice for automation panels and controls.
- 4PDT contact configuration allows simultaneous control of up to 4 separate circuits.
- Socket-mounting option for simplified installation and maintenance.
- Mechanical flag indicator displays the relay status during testing or operation.
- Full-feature covers include an LED indicator and a locking test button.
Specifications
Conformance Attributes
- Product Certifications
- UL, CE, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50/60 Hz, 1 hp 277 V AC 50/60 Hz
- Minimum Switching Current
- 10 mA 17 V
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Local Signalling
- LED, flag
- Vibration Resistance
- +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), 3 gn 35-150 Hz)
- Ie Rated Operational Current5
- 15 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2403024EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Material
- silver alloy, gold flashed
- Control Type
- lockable test button
- Mechanical Durability
- 10000000 cycles
- Package Weight Lbs
- 80 g
- Power Consumption In W
- 1.95-1.95 W DC
- Product Or Component Type
- power relay
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Voltage Range
- 0.8...1.1 Un AC/DC
- Medium Desc
- Power relay, SE Relays, 15A, 4PDT, 24 VAC, cover with locking push button and LED
- Product Kit Identifier
- N
- Global Commercial Status
- End of commerc. announced
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Operating Time20 ms operating, 20 ms tripping
Ie Rated Operational Current215 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Contacts Type And Composition4 NO + 4 NC
Electrical Durability100000 cycles resistive
Mounting Supportsocket
Power Consumption In VA2.85-2.85 VA AC
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLegacy
Shock Resistance15 gn in operation
Switch Function4PDT
Connections TerminalsFaston terminals
Stocking FlagY
Pep CodeENVPEP2403024EN
Connections Terminals3Faston terminals
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Ambient Air Temperature For Operation
- -40-55 °C
- Circularity Profile
- ENVEOLI2403024EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2403024EN
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Ambient Air Temperature For Storage-40-85 °C
Environmental DisclosureENVPEP2403024EN
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 24 V AC
Input Resistance80 Ohm
Specifications
- Depth
- 27.3 mm
