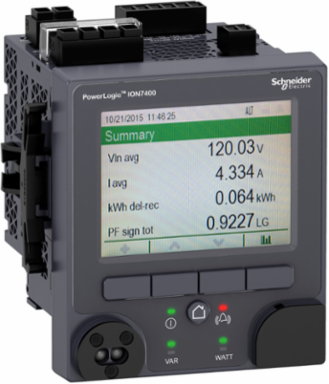

Square D METSEION74003 PowerLogic ION7400 Panel meter w display - optical port + 2p - RMICAN approved
- MPN: METSEION74003
- PPN: SCH-METSEION74003
CAD
$4863.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerLogic ION7400 Panel meter w display - optical port + 2p - RMICAN approved
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- power meter
- Device Short Name
- ION7400
Product NamePowerLogic ION7400
RangePowerLogic
Complementary
- Network Frequency
- 50 Hz || 60 Hz
- Communication Port Support
- ETHERNET || screw terminal block RS485 || optical probe fiber optic || mini B USB USB
- Power Quality Analysis
- EN 50160 compliance report || IEC 61000-4-30 class S power quality measurement || up to the 63rd harmonic || harmonic distortion || waveform capture || voltage sag and swell detection || programmablity (logic and math functions) || IEC 62586 power quality monitoring || IEC 61000-4-15 flicker || disturbance direction detection
- Mounting Mode
- flush-mounted
- Measurement Voltage
- 57-400 V AC 42...69 Hz between phase and neutral || 100-690 V AC 42...69 Hz between phases
- Standards
- IEC 61326-1 || IEC 62052-11 || IEC 62053-22 || IEC 61557-12 || IEC 62053-24
- Number Of Outputs
- 1 pulse
- Product Certifications
- CE || cULus || N998
- Poles Description
- 3P || 1P + N || 3P + N
- Frequency Measurement Range
- 42-69 Hz
- Data Recording
- sag and swell logs || trending/forecasting || alarm logs || min/max of instantaneous values || harmonics logs || GPS synchronisation || waveform logs || event logs || time stamping || data logs || sequence of event recording
- Power Consumption In Va
- 18 VA 415 V AC
- Display Resolution
- 320 x 240 pixels QVGA
- Web Services
- customizable home page || file upload/download via FTP || web server || alarm notification by e-mail || HTTP server
- Display Type
- colour TFT LCD
- Device Application
- revenue billing || power monitoring || data aggregation || WAGES metering
- Tamperproof Of Settings
- RMICAN protected
- Depth
- 78.5 mm
- Measurement Current
- 50-10000 mA
Information Displayedvoltage || current || frequency || power || energy consumption || harmonic distortion
[Us] Rated Supply Voltage90...415 V AC 45...65 Hz +/- 10 % || 110...415 V DC +/- 10 %
Height112 mm
Measurement Accuracycurrent +/- 0.1 % || voltage +/- 0.1 % || active energy +/- 0.2 %
Sampling Rate256 samples/cycle
Memory Capacity512 MB
Mounting Supportframework
Type Of Measurementcurrent || voltage || frequency || active and reactive power total || apparent power total || power factor total || active and reactive power per phase, rms || apparent power per phase, rms || power factor per phase, rms || active and reactive energy || apparent energy
Communication Port ProtocolModbus RTU 115 kbauds - 2-wire || ION 115 kbauds - 2-wire || DNP3 || IEC 61850 || Modbus TCP/IP || Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s || RSTP 801.1d 2004 || Ansi C12.19 || DLMS
Communication ServiceSNMP || NTP time synchronization || RSTP support || SMTP e-mail notification
[In] Rated Current10 A || 5 A || 1 A
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3 || III400-690 V conforming to EN 61010-1:ed. 3 || III347-600 V conforming to UL 61010-1:ed. 3 || III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Analogue Input Typevoltage (impedance 5 MOhm) || current (impedance 0.3 mOhm)
Width98 mm
Number Of Inputs3 digital 30 V AC || 3 digital 60 V DC
Net Weight706 g
Type Of Installationindoor installation
Accuracy Classclass 0.2S active energy IEC 62053-22 || class 0.2 active energy ANSI C12.20 || class 0.2 active power IEC 61557-12 || class 0.5S reactive energy IEC 62053-24 || class 0.5 power factor IEC 61557-12 || class 0.2 voltage IEC 61557-12 || class 0.2 current IEC 61557-12 || class 0.2 frequency IEC 61557-12 || class 0.2 active energy IEC 61557-12
Installation CategoryIII
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1512006EN
Environmental DisclosureENVPEP1512006EN
Eu Rohs DirectiveCompliant
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Relative Humidity
- 5-95 %
- Electromagnetic Compatibility
- electrostatic discharge conforming to IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test conforming to IEC 61000-4-4 || surge immunity test conforming to IEC 61000-4-5 || conducted RF disturbances conforming to IEC 61000-4-6 || magnetic field at power frequency conforming to IEC 61000-4-8 || voltage dips and interruptions immunity test conforming to IEC 61000-4-11 || immunity to impulse waves conforming to IEC 61000-4-12 || conducted and radiated emissions conforming to EN 55022 || conducted and radiated emissions conforming to EN 55011 || conducted and radiated emissions conforming to FCC part 15 || conducted and radiated emissions conforming to ICES-003 || conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579 || surge withstand conforming to IEEE C37.90.1
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of Protectionfront IP54 IEC 60529 || body IP30 IEC 60529
Operating Altitude3000 m
