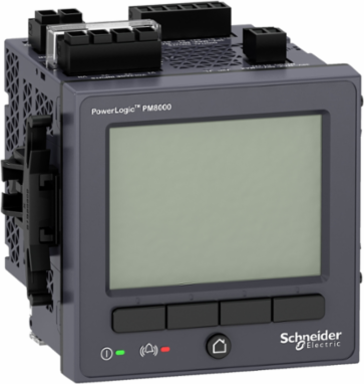

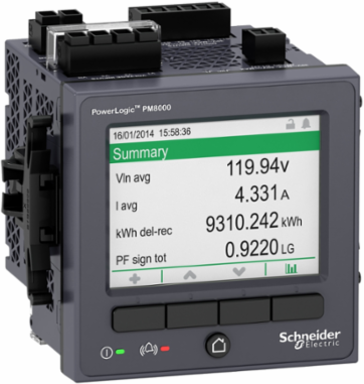

Schneider Electric METSEPM8340 Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
Schneider Electric METSEPM8340 Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
- MPN: METSEPM8340
- PPN: SCH-METSEPM8340
- UNSPSC: 41113708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Power quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
Features
- Fast access to timely, critical information for energy, electrical network, and asset management
- Help operations personnel avoid downtime by making power quality understandable
- Makes energy and power quality actionable to support your op and sustainability goals
- More detailed PQ compliance reporting, and expert level power quality and root cause analytics
- Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
- Ensure energy efficiency and optimized costs by understanding how energy is being consumed
- Perform sub billing or allocate cost to encourage energy efficient behavior, reduce PF penalties
- Support participation in demand response or variable tariff (TOU, RTP) programs
- Maximize use of capacity by performing load studies and infrastructure expansion planning
- Patented ION Programming allows for full alarm/calc customization, control and more
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
- Communication Service
- SMTP e-mail notification, RSTP support, NTP time synchronization, DHCP, PTP time synchronization
Communication Port SupportETHERNET, screw terminal block RS485
Communication Network TypeIPv6 (internet protocol)
Conformance Attributes
- Product Certifications
- CE, cULus, N998
StandardsIEC 61557-12, IEC 62052-11, IEC 62053-24, IEC 62053-22, IEEE 1588, IEC 62586-2, IEC 61326-1
Complementary Attributes
- Line Rated Current
- 1 A, 5 A, 10 A
Important Information Attributes
- Cybersecurity
- enable/disable communication ports, password protection, Syslog protocol support, robust security logs, port hardening
- Device Application
- power monitoring, WAGES metering
- Information Displayed
- voltage, current, frequency, power, energy consumption, harmonic distortion
- Measurement Accuracy
- current +/- 0.1 %, voltage +/- 0.1 %, active energy +/- 0.2 %
- Network Frequency
- 50 Hz, 60 Hz
- Power Quality Analysis
- EN 50160 2010 compliance report, IEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, up to the 63rd harmonic, IEC 61000-4-15 harmonic distortion, EN 50160 2010 waveform capture, IEEE 519 2014 voltage sag and swell detection, programmablity (logic and math functions), IEC 62586 power quality monitoring, disturbance direction detection, IEC 61000-4-15 flicker, rapid voltage change
- Web Services
- customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
- Carbon Footprint Of The Distribution Phase A4
- 0.3761219657477814, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.02442844100471966, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 199 kg CO2 eq., 199.2820090070477
- Us Rated Supply Voltage5
- 90...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
- Local Publishable Date
- 2025-09-08
- Serviceability
- No
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2508020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Device Short Name
- PM8340
- Display Type
- colour TFT LCD
- Frequency Measurement Range
- 42-69 Hz
- Memory Capacity
- 512 MB
- Mounting Support
- framework
- Power Consumption In VA
- 16 VA 230 V AC
- Product Or Component Type
- power meter
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP2508020EN
- Pep Verification Date
- 2025-09-15
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Data Recordingmin/max of instantaneous values, waveform logs, sequence of event recording, time stamping, alarm logs, trending/forecasting, sag and swell logs, harmonics logs, GPS synchronisation, data logs, event logs, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test conforming to IEC 61000-4-4, surge immunity test conforming to IEC 61000-4-5, conducted RF disturbances conforming to IEC 61000-4-6, magnetic field at power frequency conforming to IEC 61000-4-8, voltage dips and interruptions immunity test conforming to IEC 61000-4-11, immunity to impulse waves conforming to IEC 61000-4-12, conducted and radiated emissions (2...150 Hz) conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579, surge withstand conforming to IEEE C37.90.1
Market Segmentbuildings large building network management: main incomer, buildings large building network management: sub feeder, buildings multi-site network management: sub feeder, data center small building network management: sub feeder, healthcare multi-site network management: sub feeder, industry network management: sub feeder, buildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center network management: main incomer, healthcare large building network management: main incomer, industry multi-site network management: main incomer, utility network management: sub feeder
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral, 100-690 V AC 42...69 Hz between phases
Poles Description3P + N, 3P, 1P + N
Type Of Measurementactive and reactive power per phase, rms, apparent power per phase, rms, power factor per phase, rms, current per phase, rms, voltage, frequency total, active and reactive power total, apparent power total, power factor total
Us Rated Supply Voltage290...415 V AC 45...65 Hz +/- 10 %, 110...415 V DC +/- 10 %
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 1.783677042218933
Carbon Footprint Of The Manufacturing Phase A1 To A397 kg CO2 eq., 96.62330961493974
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3, III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Local Data StatusPublishable
Device TypeRelay, Control & Measurement - measuring, monitoring device
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Compatibility CodePM8240
Display Resolution320 x 240 pixels QVGA
Energy Efficiency OptimizedFalse
Measurement Current50-10000 mA
Mounting Modeflush-mounted
Package Weight Lbs858.000 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePowerLogic
Sampling Rate512 samples/cycle
Total Lifecycle Carbon Footprint298 kg CO2 eq.
Medium DescPower quality meter, PowerLogic PM8000, Advanced, integrated display, 512MB, 512s/c
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTechnical data:& 10Supply Voltage& 1090...415 V AC 45...65 Hz +/- 10 %& 10110...415 V DC +/- 10 %& 10Measurement voltage& 1057…400 V AC 42...69 Hz between phase and neutral& 10100…690 V AC 42...69 Hz between phases& 10Measurement current& 1050…10000 mA
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Installation CategoryIII
Product NamePowerLogic PM8000
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP2508020EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2508020EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
IP Degree Of ProtectionIP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529
Recycled Metal Content At Cr Level0 %
Carbon Footprint298.0895460709589
Circularity ProfileENVEOLI2508020EN
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 %
Pep Verification Date2025-09-15
Psr VersionPSR-0005-ed3-2023 12 08
General Attributes
- Product Or Component Type
- power meter
Output Attributes
- Number Of Outputs
- 1 pulse
Input Attributes
- Analogue Input Type
- voltage (impedance 5 MOhm), current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC, 3 digital 60 V DC
Specifications
- Depth
- 77.5 mm
