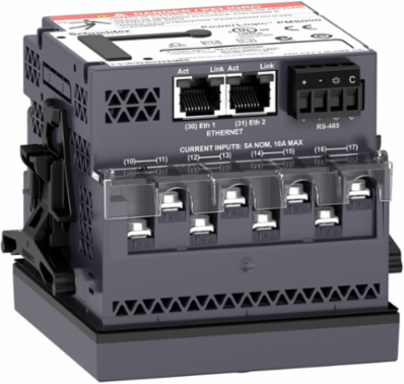

Schneider Electric METSEION7400E Power quality meter, PowerLogic ION7400, Essential, integrated display, 64 MB, 128 s/c

MPN: METSEION7400E
PPN: SCH-METSEION7400E

$3647.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

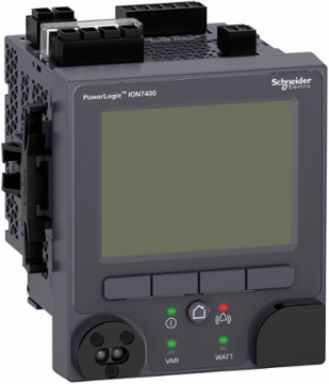

The PowerLogic ION7400E comes in a flush mount form factor with integrated display. It is designed to bring operational awareness and efficiency for your Utility Feeder applications in substation. With its modular, flexible, and power ION technology, you can build custom applications for each meter. It comes with revenue grade accuracy, multiple communication ports, and a color graphical display. Certified by third party labs for Class 0.2S energy accuracy (IEC62052-11, IEC62053-24, IEC62053-22). Cybersecurity features include secure protocols (HTTPs, sFTP, Secure ION), security event logging, Syslog protocol. Ability to enable/disable communication ports and support 50 configurable user account to help manage access. With 64MB of memory to support up to 10 data logs (160 channels), 50+ user-definable alarms, waveform captures upto 128 samples/cycle, 1/2 cycle RMS logging. The storage can also be used for custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1ms utilizing time synchronization. Time synch method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70°C; Humidity rating of 5% to 95%; Altitude up to 3000 m.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Canada, France

Depth	78.5 mm

Communications & Management Attributes

Communication Port Protocol	Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wireDNP3 10/100 Mbit/s, IEC 61850 115 kbauds - 2-wire, Modbus TCP/IP, Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, Ansi C12.19, DLMS
Communication Network Type	IPv6 (internet protocol)

Communication Service	DHCP, RSTP support, NTP time synchronization, SMTP e-mail notification, PTP time synchronization
Communication Port Support	ETHERNETscrew terminal block RS485optical probe fiber opticmini B USB USB

Complementary Attributes

Line Rated Current	10 A, 5 A, 1 A

Important Information Attributes

Cybersecurity	Syslog protocol support, robust security logs, enable/disable communication ports, password protection, port hardening
Device Application	revenue billing, WAGES metering, data aggregation, power monitoring
Information Displayed	voltage, current, frequency, power, energy consumption, harmonic distortion
Measurement Accuracy	current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Number Of Poles	1P + N, 3P, 3P + N
Type Of Measurement	apparent power per phase, rmspower factor per phase, rmscurrent, voltagefrequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy per phase, rms, apparent energy per phase, rms
Certificate Agency	CE, cULus, N998
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 2.354316872709171
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	62 kg CO2 eq., 62.471819921736106
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short Name	ION7400
Display Type	colour TFT LCD
Frequency Measurement Range	42-69 Hz
Measurement Current	50-10000 mA
Memory Capacity	64 MB
Mounting Support	framework
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	power meter
Returnability	No
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	209 kg CO2 eq.
Pep Code	ENVPEP1512006EN
Pep Verification Date	2025-03-21
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; Canada, CA
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Chile, CL
Recyclability Potential In %	4
Width Nominal	98 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	9028300000

Data Recording	alarm logs, waveform logs, sequence of event recording, event logs, sag and swell logs, data logs, harmonics logs, GPS synchronisation, time stamping, trending/forecasting, min/max of instantaneous values, 10 data recorders
Electromagnetic Compatibility	electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, electrical fast transient/burst immunity test (2...150 Hz) conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation Voltage	III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Network Frequency	50 Hz, 60 Hz
Power Quality Analysis	EN 50160 2010 compliance reportIEEE 519 2014 compliance report, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring
Web Services	customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]	2.288449939197264, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.006420220073525087, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	142 kg CO2 eq., 142.0521727305075
Local Publishable Date	2025-07-10
Stocking Flag	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1512006_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2333
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Product Kit Identifier	N
Display Resolution	320 x 240 pixels QVGA
Energy Efficiency Optimized	False
Installation Category	III
Measurement Voltage	57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting Mode	flush-mounted
Power Consumption In Va	18 VA 415 V AC
Product Name	PowerLogic ION7400
Range	PowerLogic
Sampling Rate	128 samples/cycle
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	To measure energy consumption and display the information on a screen, capable of operating within the following electrical parameters:& 10The ION7400 Power Meter operates within voltage ranges of 90-415V (50/60Hz) at <lt/>36VA, 90-120V (400Hz) at <lt/>28VA, and 120-300V at 17W, with current ratings of 1A for 0.5 seconds and 5A for 0.2 seconds, designed for 10 years of use at a 100% rate, consuming 5W in active mode (10% of the time) and 4W in standby mode (90% of the time), all in compliance with relevant standards.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	414.348
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	112 mm
[Us] Rated Supply Voltage	90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 %
Package Weight(Lbs)	954 g
Warranty (In Months)	18
Other Technical Guide Name	PLSED310113EN

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	209.17317968422356
Circularity Profile	ENVEOLI1512006_V2
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	9842.52 ft (3000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 %
Pep Verification Date	2025-03-21
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	-25-70 °C-25-70 °C
Environmental Disclosure	ENVPEP1512006EN
Ip Degree Of Protection	IP54 front: conforming to IEC 60529IP30 body: conforming to IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1512006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
