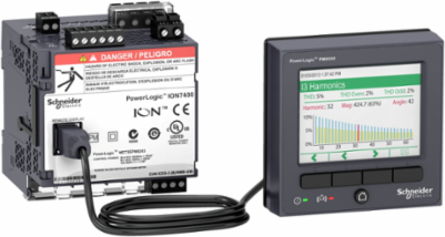

Schneider Electric METSEION7404E Power quality meter, PowerLogic ION7400, Essential, transducer and remote display, 64 MB, 128 s/c
- MPN: METSEION7404E
- PPN: SCH-METSEION7404E
- UNSPSC: 41113708
CAD
$3867.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerLogic ION7404E comes in a DIN Rail mount form factor with remote display and LVDC control power. It is designed to bring operational awareness and efficiency for your Utility Feeder applications in substation. With its modular, flexible, and power ION technology, you can build custom applications for each meter. It comes with revenue grade accuracy, multiple communication ports, and a color graphical display. Certified by third party labs for Class 0.2S energy accuracy (IEC62052-11, IEC62053-24, IEC62053-22). Cybersecurity features include secure protocols (HTTPs, sFTP, Secure ION), security event logging, Syslog protocol. Ability to enable/disable communication ports and support 50 configurable user account to help manage access. With 64MB of memory to support up to 10 data logs (160 channels), 50+ user-definable alarms, waveform captures upto 128 samples/cycle, 1/2 cycle RMS logging. The storage can also be used for custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1ms utilizing time synchronization. Time synch method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70°C; Humidity rating of 5% to 95%; Altitude up to 3000 m.
Features
- Fast access to timely, critical information for energy, electrical network, and asset management
- Help operations personnel avoid downtime by making power quality understandable
- Makes energy and power quality actionable to support your op and sustainability goals
- Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
- Ensure energy efficiency and optimized costs by understanding how energy is being consumed
- Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
- Support participation in demand response or variable tariff (TOU, RTP) programs
- Maximize use of capacity by performing load studies and infrastructure expansion planning
- Patented ION Programming allows for full alarm/calc customization, control and more
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada |
|---|---|
| Depth | 90.8 mm |
| Weight | 1437 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004, DLMS |
|---|---|
| Communication Network Type | IPv6 (internet protocol) |
| Communication Service | SMTP e-mail notification, NTP time synchronization, RSTP support, DHCP, PTP time synchronization |
|---|---|
| Communication Port Support | ETHERNETscrew terminal block RS485mini B USB USB |
Complementary Attributes
| Line Rated Current | 1 A, 5 A, 10 A |
|---|
| Us Rated Supply Voltage | 90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 % |
|---|
Important Information Attributes
| Cybersecurity | enable/disable communication ports, port hardening, Syslog protocol support, password protection, robust security logs |
|---|---|
| Device Application | revenue billing, WAGES metering, data aggregation, power monitoring |
| Information Displayed | voltage, current, frequency, power, energy consumption, harmonic distortion |
| Measurement Accuracy | current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 % |
| Network Frequency | 50 Hz, 60 Hz |
| Power Quality Analysis | EN 50160 2010 compliance reportIEEE 519 2014 compliance report, up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, programmablity (logic and math functions)IEC 62586 power quality monitoring |
| Web Services | customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server |
| Carbon Footprint Of The Distribution Phase A4 | 3.447067675709086, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.009670708852888416, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 216 kg CO2 eq., 215.63099370085487 |
| Local Publishable Date | 2025-07-10 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1512006_V2 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2333 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Display Resolution | 320 x 240 pixels QVGA |
| Frequency Measurement Range | 42-69 Hz |
| Measurement Current | 50-10000 mA |
| Memory Capacity | 64 MB |
| Power Consumption In Va | 18 VA 415 V AC |
| Product Name | PowerLogic ION7400 |
| Provided Equipment | remote display |
| Returnability | No |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 317 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | 90.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Data Recording | time stamping, trending/forecasting, waveform logs, sequence of event recording, min/max of instantaneous values, harmonics logs, data logs, sag and swell logs, GPS synchronisation, event logs, alarm logs, 10 data recorders |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1 |
| Isolation Voltage | III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Mounting Mode | flush-mounted, clip-on |
| Number Of Poles | + N, 3P, 1P + N |
| Type Of Measurement | apparent power per phase, rmspower factor per phase, rms, current total, voltage, frequency, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms, active and reactive energy, apparent energy |
| Certificate Agency | CE, cULus, N998 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 4 kg CO2 eq., 3.5462823334204177 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 94 kg CO2 eq., 94.10063441041382 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Device Short Name | ION7403 |
| Display Type | remote LCD display |
| Installation Category | III |
| Measurement Voltage | 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases |
| Mounting Support | DIN rail meter deviceframework remote display |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | power meter |
| Range | PowerLogic |
| Sampling Rate | 128 samples/cycle |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 90.5 mm |
| Customs Code | 9028300000 |
| Functional Unit Description | To measure energy consumption and display the information on a screen, capable of operating within the following electrical parameters:& 10The ION7400 Power Meter operates within voltage ranges of 90-415V (50/60Hz) at <lt/>36VA, 90-120V (400Hz) at <lt/>28VA, and 120-300V at 17W, with current ratings of 1A for 0.5 seconds and 5A for 0.2 seconds, designed for 10 years of use at a 100% rate, consuming 5W in active mode (10% of the time) and 4W in standby mode (90% of the time), all in compliance with relevant standards. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 4 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 316.7346488292511 |
| Circularity Profile | ENVEOLI1512006_V2 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2025-03-21 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1512006EN |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1512006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | power meter |
|---|
| Provided Equipment | remote display |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|---|
| ETIM 10 | EC002301 |
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 1 pulse |
|---|
Input Attributes
| Analogue Input Type | voltage (impedance 5 MOhm)current (impedance 0.3 mOhm) |
|---|
| Number Of Inputs | 3 digital 30 V AC3 digital 60 V DC |
|---|
