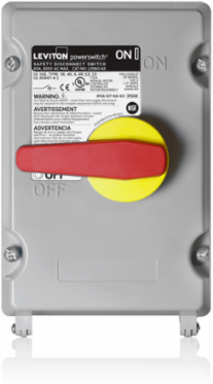

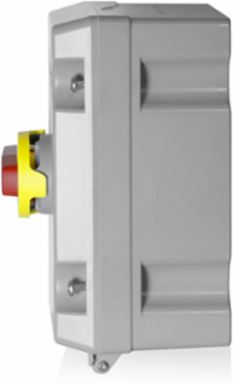

Leviton LDS60-AC Powerswitch® Safety Disconnect Switch with Factory Installed Auxiliary Contact

Powerswitch® Safety Disconnect Switch with Factory Installed Auxiliary Contact
Powerswitch® Safety Disconnect Switch with Factory Installed Auxiliary Contact
  • MPN: LDS60-AC
  • UPC: 078477646724
  • PPN: LEV-LDS60-AC

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$586.84/ EA

Description

60 Amp, 600 Volt, Non-Fused Powerswitch Safety Disconnect Switch in Non-Metallic Enclosure with Factory Installed Auxiliary Contact

Features

  • Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications.
  • PBT enclosure resists impact, abuse and corrosion
  • Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
  • NSF Certified for hygiene requirements in food & beverage processing

Specifications

Standards and Certifications

CE
CE Marked
ISO
20653
NEMA
250
NSF
14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
IEC60529
Ingress ProtectionNEMA/UL 50E Type 3R, 4, 4X, 6, 6P, 12, 13 IEC IP66, IP67, IP68, IP69 IP69K
NOMNOM-ANCE
cULuscULus UL60947-4-1A (Suitable as Motor Disconnect)

Material Specifications

Enclosure Material
PBT+PC
Gasket
Silicone Rubber
Mounting Feet
PBT+PC
Enclosure ScrewsStainless Steel
Handle MaterialPBT+PC with TPE Overmold

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal ID
In accordance with UL and international conventions
Terminal Accom.14 - 4 AWG

Specifications

Country of Origin
Mexico
RoHS CompliantFalse

Product Features

Feature
Factory Installed Auxiliary Contact

Warranty

Warranty
3-Year Limited

Environmental Specifications

Operating Temperature
-40°C to 75°C
UV ResistanceExposed materials are UV stabilized

Electrical Specifications

Amperage
60 A
Dielectric Voltage
1000 V plus twice rated voltage for 1 minute
Short Circuit Current Rating
100 kA; Fuse Type J; Fuse Size 100A
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 operating cycles at rated current and voltage
Voltage600 VAC
