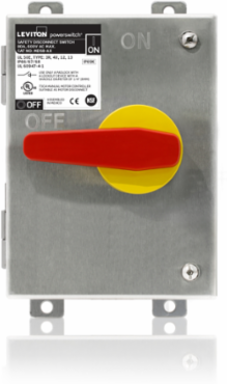

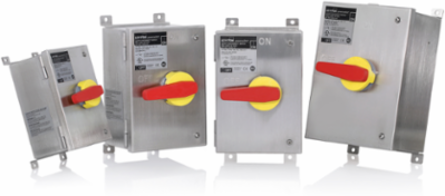

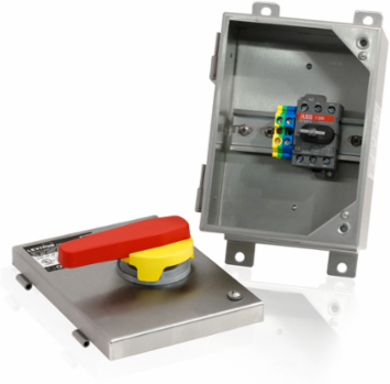

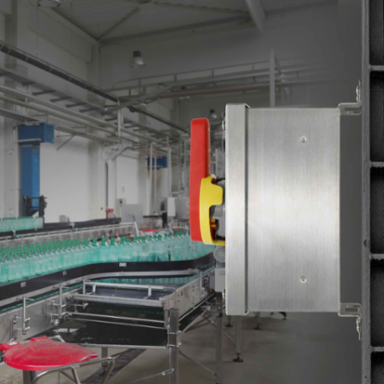

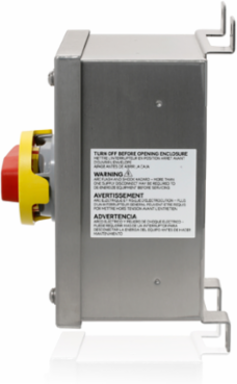

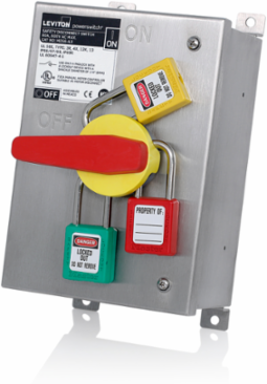

Leviton MDS8-AX 80 Amp Stainless Steel Disconnect Switch - 600 Volt, NEMA Type 3R, 4X, IP66
- MPN: MDS8-AX
- UPC: 078477739822
- PPN: LEV-MDS8-AX
CAD
$1294.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
80 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Amperage | 80 A |
|---|---|
| Current Interrupting | Certified for full-rated current and voltage |
| Endurance | 6,000 cycles inductive motor type load |
| ISO | 20653 |
| NEMA | 250 |
| NSF | 14159-1 Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Voltage | 600 VAC |
| CE | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| IEC | 60529 |
| Ingress Protection | NEMA /UL 50E Type 3R, 4X, 12, 13 • IP66, IP67, and IP68 • IP69K (per ISO 20653) |
| NOM | NOM-ANCE |
| Short Circuit Current Rating | 100KA |
| cULus | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
Material Specifications
| Enclosure Material | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Gasket | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
| Mounting Feet | 14 Gauge Type 304 Stainless Steel |
| Terminal Accom. | 14 - 4 AWG |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | Base: PBT Overmold: TPE |
| Product ID | Part of internal and external label |
| Terminal ID | In accordance with UL and international conventions |
Mechanical Specifications
| CE | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
|---|---|
| ISO | 20653 |
| NOM | NOM-ANCE |
| Product ID | Part of internal and external label |
| Terminal ID | In accordance with UL and international conventions |
| IEC | 60529 |
|---|---|
| NEMA | 250 |
| NSF | 14159-1 Hygenic Requirement for the Design of Meat & Poultry Processing Equipment |
| Terminal Accom. | 14 - 4 AWG |
| cULus | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Enclosure Material | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Gasket | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
| Mounting Feet | 14 Gauge Type 304 Stainless Steel |
| UV Resistance | Exposed materials are UV stabilized |
| Enclosure Screws | Stainless Steel |
|---|---|
| Handle Material | Base: PBT Overmold: TPE |
| Operating Temperature | -40°C to 75°C |
Electrical Specifications
| Amperage | 80 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Operating Temperature | -40°C to 75°C |
| UV Resistance | Exposed materials are UV stabilized |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Short Circuit Current Rating | 100KA |
| Voltage | 600 VAC |
