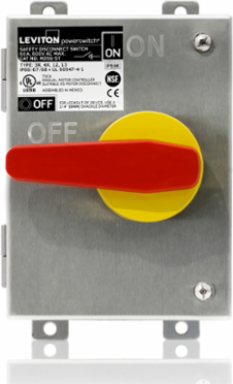

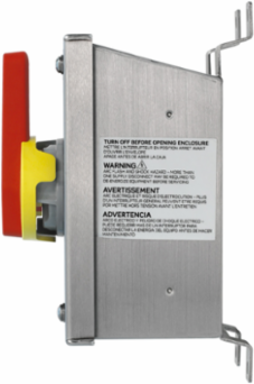

Leviton MDS6-ST 60 A Stainless Steel Slope Top Disconnect Switch
- MPN: MDS6-ST
- UPC: 078477472286
- PPN: LEV-MDS6-ST
CAD
$1228.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60 Amp Non-Fused PowerSwitch Stainless Steel Slope Top Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure, 15 Degree Slope
Features
- Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications. Built to withstand the rigors of these harsh environments, these devices address the needs of safety, washdown, reduced downtime and code compliance, and are backed by a leading 3 year warranty.
- Features a 15° slope, pushing water and debris away from the door, handle, gasket and front of the device
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
- Overmold handle provides firm grip, durability and withstands washdown
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CE
- CE Marked - Low Voltage Directive (LVD) 2014/35/EU
- NEMA
- 250
- cULus
- Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1
IEC60529
NOMNOM-ANCE
Material Specifications
- Enclosure Material
- 16 Gauge Type 304 Stainless Steel
- Handle Material
- Base: PBT Overmold: TPE
GasketPolyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved
Mechanical Specifications
- Feature
- Slope Top
- Terminal Accom.
- 14-8 AWG
Product IDPart of internal and external label
Terminal IDIn accordance with UL and international conventions
Warranty
- Warranty
- 3-Year Limited
Environmental Specifications
- Ingress Protection
- NEMA/UL 50E Type 3R, 4X, 12, 13; IP66, IP67, IP68; IP69K (per ISO 20653)
- UV Resistance
- Exposed materials are UV stabilized
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 60 A
- Dielectric Voltage
- 1000 V plus twice rated voltage for 1 minute
- Short Circuit Current Rating
- 10KA
Current InterruptingCertified for full-rated current and voltage
Endurance6,000 cycles inductive motor type load
Voltage600 VAC
