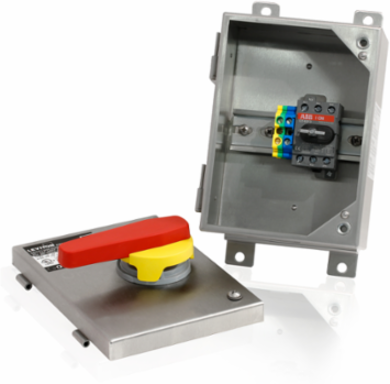

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13 - https://media.province-electric.com/476/csv_leviton/medium/d09e1cd34cfbd19c2da060941ca32ce61c1519e5-medium.png

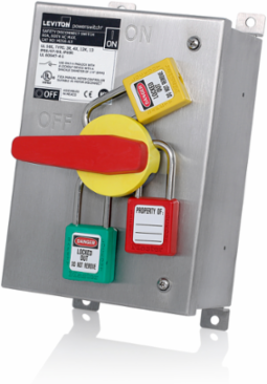

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13 - https://media.province-electric.com/476/csv_leviton/medium/b214bad8dc09b861f93b2ba0bc28aef25665e8d6-medium.png

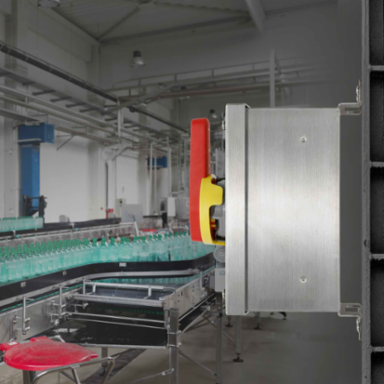

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13 - https://media.province-electric.com/476/csv_leviton/medium/64516e8793dd192dd5e27376d397304a34fca13b-medium.png

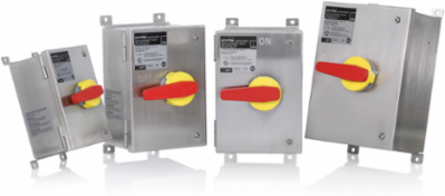

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13 - https://media.province-electric.com/476/csv_leviton/medium/2790117227b15465ef228a39102621de053ca8a3-medium.png

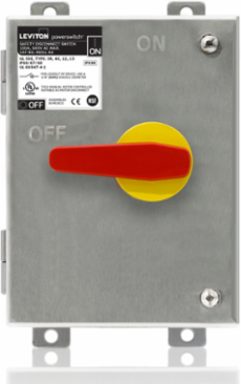

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13 - https://media.province-electric.com/476/csv_leviton/medium/12f5bacd558ddca00e12497e3d65b0d212b4b7dc-medium.png

100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13

Leviton MDS1-AX 100 Amp Stainless Steel Disconnect Switch, 600 Volt, NEMA 3R, 4X, 12, 13

MPN: MDS1-AX
UPC: 078477740408
PPN: LEV-MDS1-AX

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1408.43/ EA

Qty:

Loading add to cart quantity...

Description

100 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure

Specifications

Standards and Certifications

CE: CE Marked - Low Voltage Directive (LVD) 2014/35/EU

ISO: 20653

NEMA: 250

NSF: 14159-1 Hygenic Requirement for the Design of Meat & Poultry Processing Equipment

IEC60529

Ingress ProtectionNEMA /UL 50E Type 3R, 4X, 12, 13 • IP66, IP67, and IP68 • IP69K (per ISO 20653)

NOMNOM-ANCE

cULusListed to UL 60947-4-1 (supersedes UL 508), UL 98 and CSA-C22.2 no. 60947-4-1

Material Specifications

Enclosure Material: 16 Gauge Type 304 Stainless Steel

Gasket: Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved

Mounting Feet: 14 Gauge Type 304 Stainless Steel

Enclosure ScrewsStainless Steel

Handle MaterialBase: PBT Overmold: TPE

Mechanical Specifications

Product ID: Part of internal and external label

Terminal ID: In accordance with UL and international conventions

Terminal Accom.8 – 1/0 AWG

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Warranty

Warranty: 3-Year Limited

Environmental Specifications

Operating Temperature: -40°C to 75°C

UV ResistanceExposed materials are UV stabilized

Electrical Specifications

Amperage: 100 A

Dielectric Voltage: 1000 V plus twice rated voltage for 1 minute

Short Circuit Current Rating: 65KA

Current InterruptingCertified for full-rated current and voltage

Endurance6,000 cycles inductive motor type load

Voltage600 VAC
