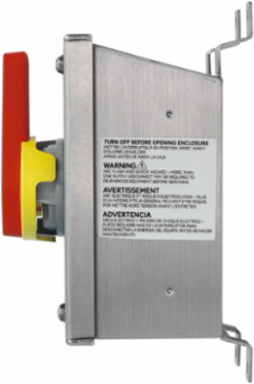

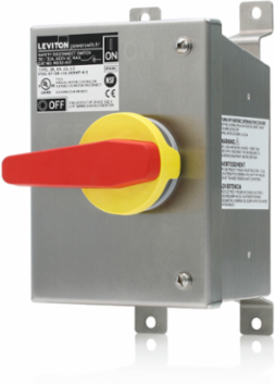

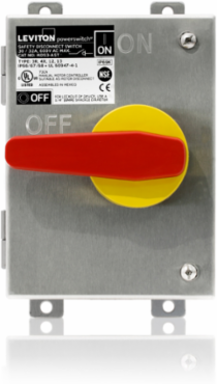

Leviton MDS3-AST 30 Amp Stainless Steel Slope Top Disconnect Switch, 600 Volt, NEMA 4X
- MPN: MDS3-AST
- UPC: 078477723487
- PPN: LEV-MDS3-AST
CAD
$841.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp Non-Fused PowerSwitch Stainless Steel Slope Top Disconnect Switch with Auxiliary Contact, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure, 15 Degree Slope
Features
- Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications. Built to withstand the rigors of these harsh environments, these devices address the needs of safety, washdown, reduced downtime and code compliance, and are backed by a leading 3 year warranty.
- Features a 15° slope, pushing water and debris away from the door, handle, gasket and front of the device
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
- Overmold handle provides firm grip, durability and withstands washdown
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CE | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
|---|---|
| NEMA | 250 |
| cULus | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
| IEC | 60529 |
|---|---|
| NOM | NOM-ANCE |
Material Specifications
| Enclosure Material | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Handle Material | Base: PBT Overmold: TPE |
| Gasket | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
|---|
Mechanical Specifications
| Product ID | Part of internal and external label |
|---|---|
| Terminal ID | In accordance with UL and international conventions |
| Terminal Accom. | 14-8 AWG |
|---|
Product Features
| Feature | Factory Installed Auxiliary Contact|Slope Top |
|---|
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Ingress Protection | NEMA/UL 50E Type 3R, 4X, 12, 13; IP66, IP67, IP68; IP69K (per ISO 20653) |
|---|---|
| UV Resistance | Exposed materials are UV stabilized |
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 30/32 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Short Circuit Current Rating | 10KA |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Voltage | 600 VAC |
