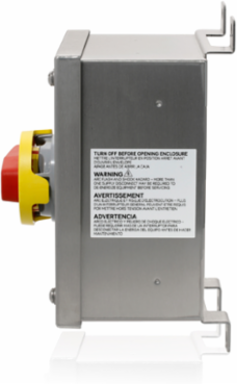

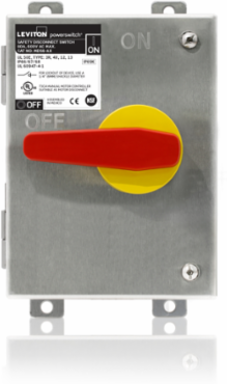

Leviton MDS6-AC Powerswitch Safety Disconnect Switch 60 Amp 600 Volt with Auxiliary Contact
- MPN: MDS6-AC
- UPC: 078477646694
- PPN: LEV-MDS6-AC
CAD
$1114.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60 Amp, 600 Volt, Non-Fused Powerswitch Safety Disconnect Switch in Stainless Steel Enclosure with Factory Installed Auxiliary Contact
Features
- Powerswitch® safety disconnect switches are designed for superior performance in food and beverage processing, manufacturing, marinas and shipyards, and OEM applications.
- Type 304 stainless steel resists heat, corrosion, and abuse
- Watertight, dust-tight, submersible and suitable for high pressure, high temperature washdown
- NSF Certified for hygiene requirements in food & beverage processing
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| CE | CE Marked - Low Voltage Directive (LVD) 2014/35/EU |
|---|---|
| NEMA | 250 |
| cULus | Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1 |
| IEC | 60529 |
|---|---|
| NOM | NOM-ANCE |
Material Specifications
| Enclosure Material | 16 Gauge Type 304 Stainless Steel |
|---|---|
| Handle Material | Base: PBT Overmold: TPE |
| Gasket | Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved |
|---|
Mechanical Specifications
| Product ID | Part of internal and external label |
|---|---|
| Terminal ID | In accordance with UL and international conventions |
| Terminal Accom. | 14-8 AWG |
|---|
Product Features
| Feature | Factory Installed Auxiliary Contact |
|---|
Warranty
| Warranty | 3-Year Limited |
|---|
Environmental Specifications
| Ingress Protection | NEMA/UL 50E Type 3R, 4X, 12, 13; IP66, IP67, IP68; IP69K (per ISO 20653) |
|---|---|
| UV Resistance | Exposed materials are UV stabilized |
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 60 A |
|---|---|
| Dielectric Voltage | 1000 V plus twice rated voltage for 1 minute |
| Short Circuit Current Rating | 100KA |
| Current Interrupting | Certified for full-rated current and voltage |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Voltage | 600 VAC |
