Schneider Electric LV426863 Pre-wired MX Shunt Trip Release, 110/130V AC, 125V DC
- MPN: LV426863
- PPN: SCH-LV426863
CAD
$1103.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

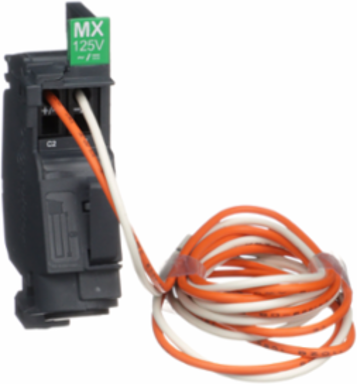

This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Physical Attributes
| Wire Stripping Length | 8 mm |
|---|
Complementary Attributes
| Impulse Duration | >= 20 ms, >= 20 ms |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Control Signal Type | maintained, impulse |
| Carbon Footprint Of The Distribution Phase [A4] | 0.01078846153846154, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.044385, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.00034253 |
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311043EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1824 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Auxiliary Connection Terminal | pre-wired 0-0.8 mm² 18 AWG)stranded copper |
| Device Application | control |
| Energy Efficiency Optimized | False |
| Product Or Component Type | voltage release |
| Range Of Product | ComPacT NSXm |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Control Circuit Voltage 4 | 125 V |
| Control Circuit Voltage 4 Control Circuit Voltage | 125 V |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To trip the circuit breaker when the control voltage rises above 70% of its rated voltage. & 10Impulse type must be superior or equal to 20ms or maintained.& 10This function is provided for 10 years.& 10It complies with IEC 60947-2 standard. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 33 |
| [Uc] Control Circuit Voltage | 110...130 V AC 50/60 Hz125 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 95.095 |
| Customs Code | 8538908180 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Voltage Release Type | opening coil, shunt trip release |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1258125 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 2.134846153846154 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | standard |
| Device Short Name | MX |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | ComPact |
| Response Time | < 50 ms< 50 ms |
| Software Version | v5.9.4 |
| Threshold Tripping Voltage | 0.7 Un opening |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Control Circuit Voltage 4 Control Circuit Type | DC |
| Pep Code | ENVPEP2311043EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Length Total | 1 m |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 82.500 g |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] | 0.462 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 0.462 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Carbon Footprint | 2.3161746453846157 |
| Environmental Disclosure | ENVPEP2311043EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2311043EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | No |
| Circularity Profile | ENVEOLI2311043EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | voltage release |
|---|
| Range Of Product | ComPacT NSXm |
|---|
ETIM
| ETIM 8 | EC001023 |
|---|
| ETIM 9 | EC001023 |
|---|
