Telemecanique Sensors

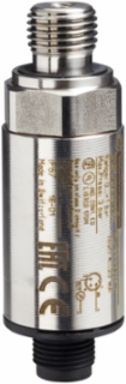

Telemecanique Sensors XMLG001D21 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...1 bar, G 1/4 A (male), 24 V, 4...20 mA, set of 1

Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...1 bar, G 1/4 A (male), 24 V, 4...20 mA, set of 1
  • MPN: XMLG001D21
  • PPN: TES-XMLG001D21
  • UNSPSC: 39122210

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$305.70/ EA

Description

This XMLG electronic pressure sensor has a a pressure rating of 1 bar, a M12 connector electrical connection and a G 1/4 a DIN 3852-e male fluid connection. This pressure transmitter sensor is designed for accurate pressure control of fresh water (0°C-125°C), hydraulic oils and corrosive fluids between -15°C and 125°C. It is fixed directly on tubage. It has a ceramic Al2O3 (Aluminium Oxide) cell and a stainless steel (AISI 303) body, this makes it compatible with corrosive non alkaline fluids. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with EN/IEC 61326-2-3, CSA C22.2 No.14, UL 508, EAC. Well suited for a wide range of fluid types and applications from hydraulic and pneumatic installations to water pumps and machine tooling.

Specifications

Environment

Product Certifications
EAC || CSA C22.2 No 14 || UL 508
Ambient Air Temperature For Operation
-15-85 °C
Standards
CE || EN/IEC 61326-2-3
Resistance To Magnetic Fields
30 A/m 50 Hz EN/IEC 61000-4-8
Ip Degree Of Protection
IP66 EN/IEC 60529 || IP67 EN/IEC 60529
Ambient Air Temperature For Storage
-40-85 °C
Protective Treatment
TC
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of ProtectionNEMA 4
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients4 kV EN/IEC 61000-4-4

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Height
58.1 mm
[Uimp] Rated Impulse Withstand Voltage
0.5 kV
Drift Of The Zero Point
+/- 0.015 % of measuring range/°C
Length
48.5 mm
Net Weight
0.095 kg
Surge Withstand
1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
Mechanical Durability
10000000 cycles
Measurement Accuracy
+/- 0.3 % of the measuring range
Electrical Circuit Type
control circuit
Maximum Permissible Accidental Pressure
2.7 bar
Pressure Setting Range
0-1 bar
Response Time On Output< 2 ms
Repeat Accuracy+/- 0.1 % of the measuring range
Materials In Contact With Fluidceramic || FPM (Viton) || stainless steel type AISI 303
Local Displaywithout
Current Consumption< 20 mA
Scale Typefixed differential
Operating Positionany position
Protection Typeload short-circuit || reverse polarity
Drift Of The Sensitivity+/- 0.015 % of measuring range/°C
Destruction Pressure3 bar

Specifications

Pressure Sensor Type
pressure transmitter
Type Of Output Signal
analogue
Range Of Product
Telemecanique Pressure sensors XM
Type Of Packing
individual
Fluid Connection Type
G 1/4A (male) DIN 3852-E
Controlled Fluid
air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
Quantity Per Set
set of 1
Electrical Connection1 male connector M12, 3 pins
Diameter22.8 mm
Product Or Component Typeelectronic pressure sensors
Pressure Sensor NameXMLG
Pressure Sensor Size1 bar
Analogue Output Function4...20 mA, 2 wires
[Us] Rated Supply Voltage12 V DC 8-33 V) || 24 V DC 8-33 V)
