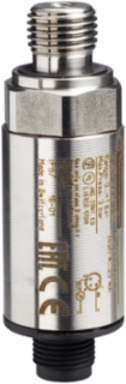

Telemecanique Sensors XMLG010D71 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0.8...10 bar, G 1/4 A (male), 24 V, 0...10 V

This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a G 1/4A (male) for fluid connection. It supports 0V to 10V, 3 wires analogue output signal. It is an IP66, IP67 and NEMA 4 rated product. It is furnished with 3-pin M12 male connector for electrical connection. With a pressure setting range of 0bar to 10bar, a maximum permissible accidental pressure of 22bar and a destruction pressure of 25bar. It has a rated supply voltage of 24V DC (voltage limits 11.4V to 33V) and a current consumption of <20mA. It can be operated in any position. Its mechanical durability is 10 million operating cycles. The electronic pressure sensor has a metal body with stainless steel 303 fluid entry. Its dimensions are 22.8mm (Diameter) x 48.5mm (Length) x 58.1mm (Height) and weighs 0.095kg. This pressure switch suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CSA C22.2 No 14, EAC, UL 508 and CE. It meets EN/IEC 61326-2-3 standards. One of the most comprehensive ranges of industrial and power pressure sensors on the market, including a user-friendly electronic transmitter sensor, with unrivalled flexibility of modification during operation. Ex nautilus control pressure switches, pressure transmitters and power pressure switches for industrial pressure control.
