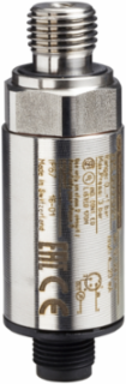

Telemecanique Sensors XMLG016D21 Electronic pressure sensors, Pressure sensors XM, sensor XMLA, 0...16 bar, G 1/4 A (male), 24 V, 4...20 mA
Telemecanique Sensors XMLG016D21 Electronic pressure sensors, Pressure sensors XM, sensor XMLA, 0...16 bar, G 1/4 A (male), 24 V, 4...20 mA
- MPN: XMLG016D21
- PPN: TES-XMLG016D21
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$307.53/ EA
Description
This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a G 1/4A (male) for fluid connection. This pressure switch is suitable for controlling fluids such as air (-15°C to 125°C), corrosive fluid (-15°C to 125°C), hydraulic oil (-15°C to 125°C) and fresh water (0°C to 125°C). It supports 4mA to 20mA, 2 wires analogue output signal. It is furnished with 3-pin M12 male connector for electrical connection and control electrical circuit. With a pressure setting range of 0bar to 16bar, a maximum permissible accidental pressure of 36bar and a destruction pressure of 40bar. It is an electronic pressure sensor with a rated supply voltage of 12V DC (voltage limits 8V to 33V), 24V DC (voltage limits 8V to 33V) and a current consumption of <20mA. It is an IP66, IP67 and NEMA 4 rated product. The electronic pressure sensor has a metal body with stainless steel 303 fluid entry. Its dimensions are 22.8mm (Diameter) x 48.5mm (Length) x 58.1mm (Height) and weighs 0.095kg. This pressure switch can be used for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CSA C22.2 No 14, EAC, UL 508 and CE. It meets EN/IEC 61326-2-3 standards. One of the most comprehensive ranges of industrial and power pressure sensors on the market, including a user-friendly electronic transmitter sensor, with unrivalled flexibility of modification during operation. Ex nautilus control pressure switches, pressure transmitters and power pressure switches for industrial pressure control.
Specifications
Environment
- Product Certifications
- CSA C22.2 No 14 || EAC || UL 508
- Ambient Air Temperature For Operation
- -15-85 °C
- Standards
- CE || EN/IEC 61326-2-3
- Resistance To Magnetic Fields
- 30 A/m 50 Hz EN/IEC 61000-4-8
- Ip Degree Of Protection
- IP66 EN/IEC 60529 || IP67 EN/IEC 60529
- Ambient Air Temperature For Storage
- -40-85 °C
- Protective Treatment
- TC
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of ProtectionNEMA 4
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients4 kV EN/IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 58.1 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.015 % of measuring range/°C
- Length
- 48.5 mm
- Net Weight
- 0.095 kg
- Surge Withstand
- 1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- +/- 0.3 % of the measuring range
- Electrical Circuit Type
- control circuit
- Maximum Permissible Accidental Pressure
- 36 bar
- Pressure Setting Range
- 0-16 bar
Response Time On Output< 2 ms
Repeat Accuracy+/- 0.1 % of the measuring range
Materials In Contact With Fluidceramic || FPM (Viton) || stainless steel type AISI 303
Local Displaywithout
Current Consumption< 20 mA
Scale Typefixed differential
Operating Positionany position
Protection Typeload short-circuit || reverse polarity
Drift Of The Sensitivity+/- 0.015 % of measuring range/°C
Destruction Pressure40 bar
Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Type Of Packing
- individual
- Fluid Connection Type
- G 1/4A (male) DIN 3852-E
- Controlled Fluid
- air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
- Quantity Per Set
- set of 1
Electrical Connection1 male connector M12, 3 pins
Diameter22.8 mm
Product Or Component Typeelectronic pressure sensors
Pressure Sensor NameXMLG
Pressure Sensor Size16 bar
Analogue Output Function4...20 mA, 2 wires
[Us] Rated Supply Voltage12 V DC 8-33 V) || 24 V DC 8-33 V)
