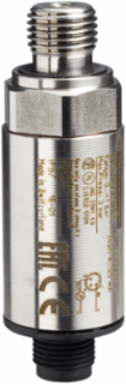

Telemecanique Sensors XMLG006D23 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...6 bar, 1/4" NPT male, 24 V, 4...20 mA
Telemecanique Sensors XMLG006D23 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...6 bar, 1/4" NPT male, 24 V, 4...20 mA
- MPN: XMLG006D23
- PPN: TES-XMLG006D23
- UNSPSC: 39122210
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$305.70/ EA
Description
This XMLG electronic pressure sensor has a pressure rating of 1 bar, a M12 connector electrical connection and a G 1/4 a DIN 3852-e male fluid connection. This pressure transmitter sensor is designed for accurate pressure control of fresh water (0°C-125°C), hydraulic oils and corrosive fluids between -15°C and 125°C. It is fixed directly on tube. It has a ceramic Al2O3 (aluminum Oxide) cell and a stainless steel (AISI 303) body, this makes it compatible with corrosive non alkaline fluids. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with EN/IEC 61326-2-3, CSA C22.2 No.14, UL 508, EAC. Well suited for a wide range of fluid types and applications from hydraulic and pneumatic installations to water pumps and machine tooling. It is suitable for monitoring air, fresh water, hydraulic oils and refrigeration fluids. This product is certified by CSA C22.2 No 14, EAC and UL 508. It meets CE and EN/IEC 61326-2-3 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.
Specifications
Environment
- Product Certifications
- EAC || UL 508 || CSA C22.2 No 14
- Ambient Air Temperature For Operation
- -15-85 °C
- Standards
- EN/IEC 61326-2-3 || CE
- Resistance To Magnetic Fields
- 30 A/m 50 Hz EN/IEC 61000-4-8
- Ip Degree Of Protection
- IP66 EN/IEC 60529 || IP67 EN/IEC 60529
- Ambient Air Temperature For Storage
- -40-85 °C
- Protective Treatment
- TC
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of ProtectionNEMA 4
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients4 kV EN/IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 58.1 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.015 % of measuring range/°C
- Length
- 48.5 mm
- Net Weight
- 0.095 kg
- Surge Withstand
- 1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
- Operating Position
- any position
- Protection Type
- load short-circuit || reverse polarity
- Drift Of The Sensitivity
- +/- 0.015 % of measuring range/°C
- Destruction Pressure
- 15 bar
Response Time On Output< 2 ms
Repeat Accuracy+/- 0.1 % of the measuring range
Materials In Contact With FluidFPM (Viton) || stainless steel type AISI 303 || ceramic
Local Displaywithout
Current Consumption< 20 mA
Mechanical Durability10000000 cycles
Measurement Accuracy+/- 0.3 % of the measuring range
Electrical Circuit Typecontrol circuit
Maximum Permissible Accidental Pressure13.5 bar
Pressure Setting Range0-6 bar
Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Type Of Packing
- individual
- Fluid Connection Type
- 1/4" - 18 NPT (male)
- Controlled Fluid
- air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
- Quantity Per Set
- set of 1
Electrical Connection1 male connector M12, 3 pins
Diameter22.8 mm
Product Or Component Typeelectronic pressure sensors
Pressure Sensor NameXMLG
Pressure Sensor Size6 bar
Analogue Output Function4...20 mA, 2 wires
[Us] Rated Supply Voltage12 V DC 8-33 V) || 24 V DC 8-33 V)
