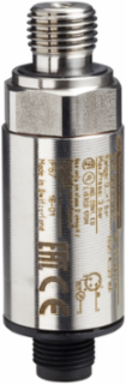

Telemecanique Sensors XMLG006D21 Electronic pressure sensors, Pressure sensors XM, sensor XMLA, 0...6 bar, G 1/4 A (male), 24 V, 4...20 mA
- MPN: XMLG006D21
- PPN: TES-XMLG006D21
- UNSPSC: 39122210
CAD
$363.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XMLG electronic pressure sensor has a a pressure rating of 6 bar, a M12 connector electrical connection and a G 1/4 a DIN 3852-e male fluid connection. This pressure transmitter sensor is designed for accurate pressure control of fresh water (0°C-125°C), refrigeration fluids, hydraulic oils and corrosive fluids between -15°C and 125°C. It is fixed directly on tubage. It has a ceramic Al2O3 (Aluminium Oxide) cell and a stainless steel (AISI 303) body, this makes it compatible with corrosive non alkaline fluids. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It complies with EN/IEC 61326-2-3, CSA C22.2 No.14, UL 508, EAC. Well suited for a wide range of fluid types and applications from hydraulic and pneumatic installations to water pumps and machine tooling.
Documentation & Downloads
Specifications
Key Specifications
| Pressure Sensor Type | pressure transmitter |
|---|---|
| Type Of Output Signal | analogue |
| Range Of Product | Telemecanique Pressure sensors XM |
| Type Of Packing | individual |
| Fluid Connection Type | G 1/4A (male) DIN 3852-E |
| Controlled Fluid | air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C) |
| Quantity Per Set | set of 1 |
| Electrical Connection | 1 male connector M12, 3 pins |
|---|---|
| Diameter | 22.8 mm |
| Product Or Component Type | electronic pressure sensors |
| Pressure Sensor Name | XMLG |
| Pressure Sensor Size | 6 bar |
| Analogue Output Function | 4...20 mA, 2 wires |
| [Us] Rated Supply Voltage | 12 V DC 8-33 V) || 24 V DC 8-33 V) |
Complementary
| Height | 58.1 mm |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 0.5 kV |
| Drift Of The Zero Point | +/- 0.015 % of measuring range/°C |
| Length | 48.5 mm |
| Net Weight | 0.095 kg |
| Surge Withstand | 1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5 |
| Mechanical Durability | 10000000 cycles |
| Measurement Accuracy | +/- 0.3 % of the measuring range |
| Electrical Circuit Type | control circuit |
| Maximum Permissible Accidental Pressure | 13.5 bar |
| Pressure Setting Range | 0-6 bar |
| Response Time On Output | < 2 ms |
|---|---|
| Repeat Accuracy | +/- 0.1 % of the measuring range |
| Materials In Contact With Fluid | ceramic || FPM (Viton) || stainless steel type AISI 303 |
| Local Display | without |
| Current Consumption | < 20 mA |
| Scale Type | fixed differential |
| Operating Position | any position |
| Protection Type | load short-circuit || reverse polarity |
| Drift Of The Sensitivity | +/- 0.015 % of measuring range/°C |
| Destruction Pressure | 15 bar |
Environment
| Product Certifications | CSA C22.2 No 14 || EAC || UL 508 |
|---|---|
| Ambient Air Temperature For Operation | -15-85 °C |
| Standards | EN/IEC 61326-2-3 || CE |
| Resistance To Magnetic Fields | 30 A/m 50 Hz EN/IEC 61000-4-8 |
| Ip Degree Of Protection | IP66 EN/IEC 60529 || IP67 EN/IEC 60529 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Protective Treatment | TC |
| Resistance To Conducted Disturbances | 30 V 0.15-80 Hz)EN/IEC 61000-4-6 |
|---|---|
| Resistance To Electromagnetic Fields | 200 V/m 80-1000 Hz EN/IEC 61000-4-3 |
| Shock Resistance | 25 gn 11 ms EN/IEC 60068-2-27 |
| Vibration Resistance | 20 gn 9-2000 Hz)EN/IEC 60028-2-6 |
| Nema Degree Of Protection | NEMA 4 |
| Resistance To Electrostatic Discharge | 15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2 |
| Resistance To Fast Transients | 4 kV EN/IEC 61000-4-4 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
