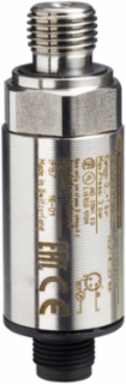

Telemecanique Sensors XMLG100D21 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...100 bar, G 1/4 A (male), 24 V, 4...20 mA
- MPN: XMLG100D21
- PPN: TES-XMLG100D21
CAD
$305.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...100 bar, G 1/4 A (male), 24 V, 4...20 mA
Documentation & Downloads
Specifications
Key Specifications
- Pressure Sensor Type
- pressure transmitter
- Type Of Output Signal
- analogue
- Range Of Product
- Telemecanique Pressure sensors XM
- Type Of Packing
- individual
- Fluid Connection Type
- G 1/4A (male) DIN 3852-E
- Controlled Fluid
- air -15-125 °C) || corrosive fluid -15-125 °C) || hydraulic oil -15-125 °C) || fresh water 0-125 °C)
- Quantity Per Set
- set of 1
Electrical Connection1 male connector M12, 3 pins
Diameter22.8 mm
Product Or Component Typeelectronic pressure sensors
Pressure Sensor NameXMLG
Pressure Sensor Size100 bar
Analogue Output Function4...20 mA, 2 wires
[Us] Rated Supply Voltage12 V DC 8-33 V) || 24 V DC 8-33 V)
Complementary
- Height
- 58.1 mm
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Drift Of The Zero Point
- +/- 0.015 % of measuring range/°C
- Length
- 48.5 mm
- Net Weight
- 0.095 kg
- Surge Withstand
- 1 kV 42 Ohm EN/IEC 61000-4-5 || 500 kV 12 Ohm EN/IEC 61000-4-5
- Mechanical Durability
- 10000000 cycles
- Measurement Accuracy
- +/- 0.3 % of the measuring range
- Electrical Circuit Type
- control circuit
- Maximum Permissible Accidental Pressure
- 225 bar
- Pressure Setting Range
- 0-100 bar
Response Time On Output< 2 ms
Repeat Accuracy+/- 0.1 % of the measuring range
Materials In Contact With Fluidceramic || stainless steel type AISI 303 || FPM (Viton) || PPS
Local Displaywithout
Current Consumption< 20 mA
Scale Typefixed differential
Operating Positionany position
Protection Typereverse polarity || load short-circuit
Drift Of The Sensitivity+/- 0.015 % of measuring range/°C
Destruction Pressure250 bar
Environment
- Product Certifications
- UL 508 || CSA C22.2 No 14 || EAC
- Ambient Air Temperature For Operation
- -15-85 °C
- Standards
- EN/IEC 61326-2-3 || CE
- Resistance To Magnetic Fields
- 30 A/m 50 Hz EN/IEC 61000-4-8
- Ip Degree Of Protection
- IP66 EN/IEC 60529 || IP67 EN/IEC 60529
- Ambient Air Temperature For Storage
- -40-85 °C
- Protective Treatment
- TC
Resistance To Conducted Disturbances30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of ProtectionNEMA 4
Resistance To Electrostatic Discharge15 kV in air EN/IEC 61000-4-2 || 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients4 kV EN/IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
