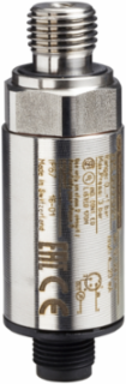

Telemecanique Sensors XMLG100D23 Electronic pressure sensors, Pressure sensors XM, sensor XMLG, 0...100 bar, 1/4" NPT male, 24 V, 4...20 mA

MPN: XMLG100D23
PPN: TES-XMLG100D23

$305.70

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the XM range, an offer of electronic pressure sensors. The electronic pressure sensor features a 1/4-18 NPT (male) for fluid connection. It is a pressure switch with a pressure setting range of 0bar to 100bar, a maximum permissible accidental pressure of 225bar and a destruction pressure of 250bar. It supports 4mA to 20mA, 2-wire analog output signal. It is furnished with 3-pin M12 male connector for electrical connection. It is an electronic pressure sensor with a rated supply voltage of 12V DC, 24V DC (voltage limits 8V to 33V) and a current consumption of <20mA. Its dimensions are 22.8mm (diameter) x 48.5mm (length) x 58.1mm (height). It weighs 0.095kg. It is suitable for monitoring air, fresh water, hydraulic oils and corrosive fluids. This product is certified by CSA C22.2 No 14, EAC and UL 508. It meets CE and EN/IEC 61326-2-3 standards. One of the most comprehensive catalogues of industrial and power pressure sensors on the market. The line of XM Pressure Sensors and Switches (formerly known as OsiSense) combine the latest pressure sensing technology with adaptability to virtually any configuration.

Documentation & Downloads

Specifications

Key Specifications

Pressure Sensor Type	pressure transmitter
Type Of Output Signal	analogue
Range Of Product	Telemecanique Pressure sensors XM
Type Of Packing	individual
Fluid Connection Type	1/4" - 18 NPT (male)
Controlled Fluid	air -15-125 °C) \|\| corrosive fluid -15-125 °C) \|\| hydraulic oil -15-125 °C) \|\| fresh water 0-125 °C)
Quantity Per Set	set of 1

Electrical Connection	1 male connector M12, 3 pins
Diameter	22.8 mm
Product Or Component Type	electronic pressure sensors
Pressure Sensor Name	XMLG
Pressure Sensor Size	100 bar
Analogue Output Function	4...20 mA, 2 wires
[Us] Rated Supply Voltage	12 V DC 8-33 V) \|\| 24 V DC 8-33 V)

Complementary

Height	58.1 mm
[Uimp] Rated Impulse Withstand Voltage	0.5 kV
Drift Of The Zero Point	+/- 0.015 % of measuring range/°C
Length	48.5 mm
Net Weight	0.095 kg
Surge Withstand	1 kV 42 Ohm EN/IEC 61000-4-5 \|\| 500 kV 12 Ohm EN/IEC 61000-4-5
Operating Position	any position
Protection Type	load short-circuit \|\| reverse polarity
Drift Of The Sensitivity	+/- 0.015 % of measuring range/°C
Destruction Pressure	250 bar

Response Time On Output	< 2 ms
Repeat Accuracy	+/- 0.1 % of the measuring range
Materials In Contact With Fluid	FPM (Viton) \|\| stainless steel type AISI 303 \|\| PPS \|\| ceramic
Local Display	without
Current Consumption	< 20 mA
Mechanical Durability	10000000 cycles
Measurement Accuracy	+/- 0.3 % of the measuring range
Electrical Circuit Type	control circuit
Maximum Permissible Accidental Pressure	225 bar
Pressure Setting Range	0-100 bar

Environment

Product Certifications	EAC \|\| UL 508 \|\| CSA C22.2 No 14
Ambient Air Temperature For Operation	-15-85 °C
Standards	CE \|\| EN/IEC 61326-2-3
Resistance To Magnetic Fields	30 A/m 50 Hz EN/IEC 61000-4-8
Ip Degree Of Protection	IP66 EN/IEC 60529 \|\| IP67 EN/IEC 60529
Ambient Air Temperature For Storage	-40-85 °C
Protective Treatment	TC

Resistance To Conducted Disturbances	30 V 0.15-80 Hz)EN/IEC 61000-4-6
Resistance To Electromagnetic Fields	200 V/m 80-1000 Hz EN/IEC 61000-4-3
Shock Resistance	25 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance	20 gn 9-2000 Hz)EN/IEC 60028-2-6
Nema Degree Of Protection	NEMA 4
Resistance To Electrostatic Discharge	15 kV in air EN/IEC 61000-4-2 \|\| 8 kV on contact EN/IEC 61000-4-2
Resistance To Fast Transients	4 kV EN/IEC 61000-4-4
