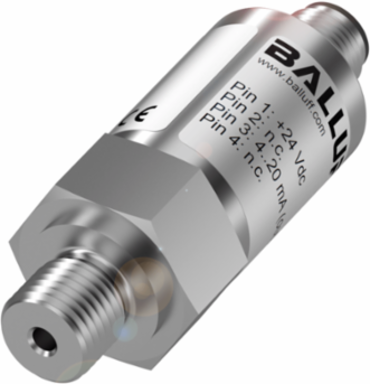

Balluff BSP B010-DV004-D06S1A-S4 Stainless Steel Pressure Sensor, 0-10 Bar, IP67, IO-Link 1.1
- MPN: BSP B010-DV004-D06S1A-S4
- PPN: BAL-BSP00PN
CAD
$289.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Stainless Steel Pressure Sensor, 0-10 Bar, IP67, IO-Link 1.1
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-10 bar
- Media Temperature
- -40 to 125 C
- IP Rating
- IP67
- Interface
- IO-Link 1.1
- Connection
- Connector, M12x1-Male, 4-pin
- Process Connection Material
- Stainless steel (1.4301)
- Weight
- 120 g
- Output Current Max
- 250 mA
- Tightening Torque Max
- 5 Nm
- Polarity Reversal Protected
- Yes
- Load Cycles
- 100 million
- Temperature Coefficient
- 0.5 % FSO/10K
- Overload Pressure
- 20 bar
- Sampling Rate
- 1 ms
Accuracy0.5 % FSO BFSL
Operating Voltage18-30 VDC
Switching OutputPNP NO/NC
Process ConnectionG 1/4" (DIN 3852)
Housing MaterialStainless steel (1.4301)
Ambient Temperature Range-25 to 85 C
Current Draw Max30 mA
Switching Frequency200 Hz
MaterialNickel-plated brass, Fluoroelastomer, Ceramic Al2O3
Short-circuit ProtectionYes
Switching Cycles Min100 million
Burst Pressure35 bar
Resolution12 bits
ComplianceCE, cULus, WEEE
