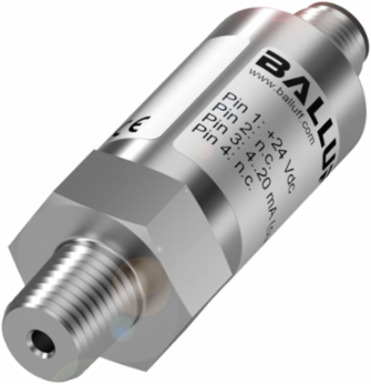

Balluff BSP B002-FV004-D06S1A-S4 Pressure Sensor, 0-2 Bar, Stainless Steel, IP67, -40 to 125 °C
- MPN: BSP B002-FV004-D06S1A-S4
- PPN: BAL-BSP00T7
CAD
$289.25
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure Sensor, 0-2 Bar, Stainless Steel, IP67, -40 to 125 °C
Documentation & Downloads
Specifications
Additional
| Accuracy | ±0.5 % FSO BFSL |
|---|---|
| Switching Output | PNP normally open/normally closed (NO/NC) |
| Operating Voltage | 18-30 VDC |
| Burst Pressure | 10 bar |
| Output Current Max | 250 mA |
| Switching Frequency | 200 Hz |
| Load Cycles | 100 million |
| Sampling Rate | 1 ms |
| Process Connection Material | Stainless steel (1.4301) |
| Connection | Connector, M12x1-Male, 4-pin |
| Ambient Temperature | -25 to 85 °C |
| Weight | 120 g |
| Housing Material | Stainless steel (1.4301) |
| Gasket Material | Fluoroelastomer |
| Compliance | CE, cULus, WEEE |
| Measuring Range | 0-2 bar |
|---|---|
| Media Temperature | -40 to 125 °C |
| Interface | IO-Link 1.1 |
| Overload Pressure | 5 bar |
| Current Draw Max | 30 mA |
| Temperature Coefficient | ±0.5 % FSO/10K |
| Switching Cycles Min | 100 million |
| Resolution | 12 bits |
| IP Rating | IP67 |
| Process Connection | 1/4" NPT |
| Storage Temperature | -40 to 85 °C |
| Tightening Torque Max | 30 Nm |
| Connector Housing Material | Nickel-plated brass |
| Measuring Cell Material | Ceramic Al2O3 |
| Protection Class | Class III |
