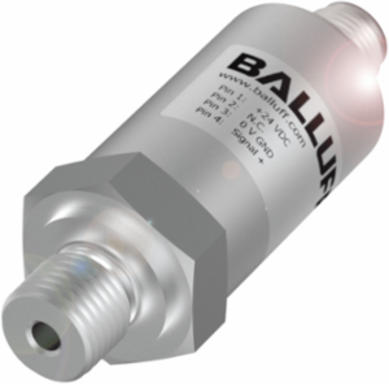

Balluff BSP B001-DV004-A06A1A-S4-004 Pressure Sensor, 0-1 bar, Stainless Steel, IP67, 4-20 mA Output
Balluff BSP B001-DV004-A06A1A-S4-004 Pressure Sensor, 0-1 bar, Stainless Steel, IP67, 4-20 mA Output
- MPN: BSP B001-DV004-A06A1A-S4-004
- PPN: BAL-BSP00L9
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$289.48/ EA
Description
The Balluff pressure sensor is engineered for precision and durability, making it an ideal choice for various industrial applications. With a measuring range of 0-1 bar and housed in robust stainless steel, this sensor is designed to withstand harsh environments, featuring an IP67 rating for protection against dust and water. Its analog output of 4-20 mA ensures reliable performance, while the wide media temperature range of -40 to 125 °C allows for versatile usage across different processes. Additionally, the sensor's compatibility with a G 1/4" process connection and M12x1 male connector facilitates easy integration into existing systems, making it a dependable solution for monitoring pressure in demanding conditions.
Specifications
Specifications
- Measuring range
- 0-1 bar
- Operating voltage Ub
- 8-32 VDC
- Connection
- Connector, M12x1-Male, 4-pin
- Process connection material
- Stainless steel (1.4301)
- Media temperature
- -40-125 °C
- IP rating
- IP67
Accuracy±0.5 % FSO BFSL
Analog outputAnalog, current 4…20 mA
Process connectionG 1/4" with pulse protection
Housing materialStainless steel (1.4301)
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
