Balluff

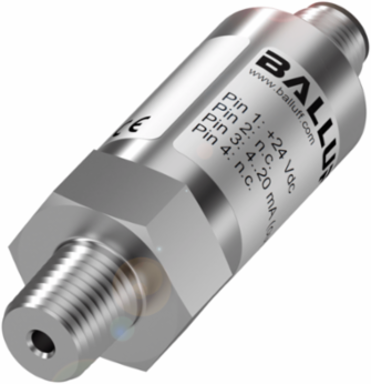

Balluff BSP B250-FV004-D06S1A-S4 Pressure Sensor, 0-250 bar, 1/4" NPT, Stainless Steel, IP67

Pressure Sensor, 0-250 bar, 1/4" NPT, Stainless Steel, IP67
  • MPN: BSP B250-FV004-D06S1A-S4
  • PPN: BAL-BSP00TF

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$280.82/ EA

Specifications

Specifications

Measuring range
0-250 bar
Operating voltage Ub
18-30 VDC
Switching output
PNP NO/NC
Process connection
1/4" NPT
Housing material
Stainless steel (1.4301)
Ambient temperature
-25-85 °C
Approval/Conformity
CE, cULus, WEEE
Accuracy±0.5 % FSO BFSL
InterfaceIO-Link 1.1
ConnectionConnector, M12x1-Male, 4-pin
Process connection materialStainless steel (1.4301)
Media temperature-40-125 °C
IP ratingIP67
