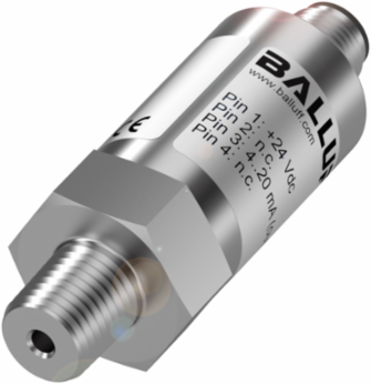

Balluff BSP B005-FV004-D06S1A-S4 Pressure Sensor with IP67, 0-5 bar, Stainless Steel Housing
- MPN: BSP B005-FV004-D06S1A-S4
- PPN: BAL-BSP00T8
CAD
$289.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor with IP67, 0-5 bar, Stainless Steel Housing
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-5 bar
- Burst Pressure
- 15 bar
- Operating Voltage
- 18-30 VDC
- Switching Frequency
- 200 Hz
- Sampling Rate
- 1 ms
- Connection
- Connector, M12x1-Male, 4-pin
- Process Connection Material
- Stainless steel (1.4301)
- Material Gasket
- Fluoroelastomer
- Tightening Torque Max
- 30 Nm
- Media Temperature
- -40 to 125 °C
- IP Rating
- IP67
- Approval/Conformity
- CE, cULus, WEEE
Accuracy±0.5 % FSO BFSL
Overload Pressure12 bar
Switching OutputPNP NO/NC
Resolution≤ 12 bits
Process Connection1/4" NPT
Housing MaterialStainless steel (1.4301)
Material Connector HousingNickel-plated Brass
Measuring Cell MaterialCeramic Al2O3
Weight120 g
Ambient Temperature-25 to 85 °C
InterfaceIO-Link 1.1
