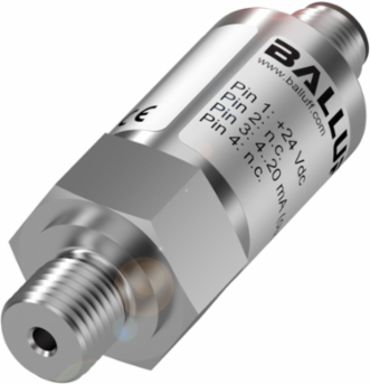

Balluff BSP V010-DV004-D06S1A-S4 Pressure Sensor, M12 Connector, -1-10 bar, IP67, Stainless Steel
- MPN: BSP V010-DV004-D06S1A-S4
- PPN: BAL-BSP00PK
CAD
$316.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, M12 Connector, -1-10 bar, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
- Measuring Range
- -1 to 10 bar
- Operating Voltage
- 18-30 VDC
- Burst Pressure
- 35 bar
- Switching Frequency
- 200 Hz
- Current Draw Max
- 30 mA
- Long-term Stability Max
- 0.3 % FSO/year
- Load Cycles
- 100 million
- Connection
- M12x1 Male, 4-pin, A-coded
- Housing Material
- Stainless steel (1.4301)
- Weight
- 120 g
- Media Temperature Range
- -40 to 125 °C
- Material Connector Housing
- Nickel-plated brass
- Material Measuring Cell
- Ceramic Al2O3
- Interface
- IO-Link 1.1
- Short-Circuit Protection
- Yes
- Compensation Temperature Range
- -25 to 85 °C
Accuracy±0.5 % FSO BFSL
Switching OutputPNP normally open/normally closed
Overload Pressure20 bar
Output Current Max250 mA
Sampling Rate1 ms
Resolution≤ 12 bits
Switching Cycles Min100 million
Process ConnectionG 1/4 in (DIN 3852)
Process Connection MaterialStainless steel (1.4301)
Ambient Temperature Range-25 to 85 °C
Tightening Torque Max5 Nm
Material GasketFluoroelastomer
IP RatingIP67
Polarity Reversal ProtectedYes
Protection ClassIII
Approval/ConformityCE, cULus, WEEE
