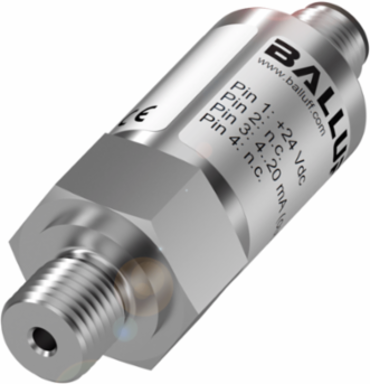

Balluff BSP B100-DV004-A06A1A-S4 Pressure Sensor, 0-100 Bar, Stainless Steel, IP67, M12 Connector
- MPN: BSP B100-DV004-A06A1A-S4
- PPN: BAL-BSP00H4
CAD
$273.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Pressure Sensor, 0-100 Bar, Stainless Steel, IP67, M12 Connector
Documentation & Downloads
Specifications
Additional
- Measuring Range
- 0-100 bar
- Burst Pressure
- 300 bar
- Operating Voltage
- 8-32 VDC
- Output
- Analog, current 4-20 mA
- Temperature Range, Media
- -40 to 125 °C
- Process Connection
- G 1/4" (DIN 3852)
- Housing Material
- Stainless steel (1.4301)
- Material
- Stainless steel (1.4301), Nickel-plated brass, Fluoroelastomer, Ceramic Al2O3
- Approval/Conformity
- CE, cULus, WEEE
- Sampling Rate
- 1 ms
- Functional Safety, MTTF (40 °C)
- 1388 a
- Weight
- 120 g
Accuracy±0.5 % FSO BFSL
Overload Pressure200 bar
Current Draw Max25 mA
Temperature Range, Ambient-40 to 85 °C
ConnectionConnector, M12x1-Male, 4-pin, A-coded
Tightening Torque5 Nm
Process Connection MaterialStainless steel (1.4301)
IP RatingIP67
Resolution≤ 14 bits
Load Cycles100 million
Protection ClassIII
