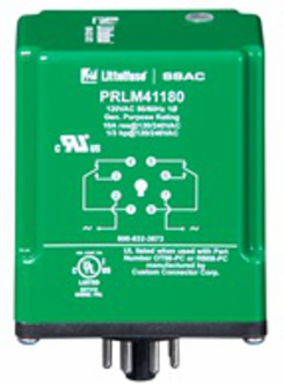

Littelfuse PRLM41180 PRLM41180 - PRLM Series
- MPN: PRLM41180
- UPC: 079458998092
- PPN: LTF-PRLM41180
CAD
$187.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation (Delay-on-Make) The time delay is initiated when input voltage is applied. LED flashes during timing. At the end of the delay period, the output contacts energize. LED is on steady after the unit times out. Reset: Reset is accomplished by removal of input voltage. There is no false output when reset during timing.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 120VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Form
- Isolated DPDT
- Time Delay Type
- Analog circuitry
- Time Delay Tolerance (%)
- ±10%
- Reset Time (ms)
- ≤ 50ms
- Setpoint vs Ambient Temperature and Operating Voltage (%)
- ≤ ±10%
- Surge Protection
- IEEE C62.41-1991 Level A
- Isolation Voltage (V)
- ≥1500V RMS input to output
- Power Consumption
- ≤2.25W
- Mounting Method
- Plug-in socket
- Dimensions
- 3.60 x 2.39 x 1.78 in. (91.6 x 60.7 x 45.2mm)
- Sample capable
- No
Input Tolerance (%)-20% - 10%
Output TypeElectromechanical relay
Output Load Rating (VA)10A resistive @ 28VDC; 10A resistive @ 240VAC; 1/3hp @ 120/240VAC
Time Delay Range180s fixed
Recycle Time (ms)After timing: ≤20ms; During timing: 0.1% of max. time delay or 75ms whichever is greater
Repeat Accuracy (%)±2% or 20ms whichever is greater
IndicationLED flashes during timing; LED on steady while output energized
Insulation Resistance≥100 MΩ
LifeMechanical - 1 x 107; Electrical - 1 x 106
Termination TypeOctal 8-pin plug-in
Operating Temperature-20° to 65°C (-4°F to 149°F)
Weight (lbs/g)≅6.0oz (170g)
