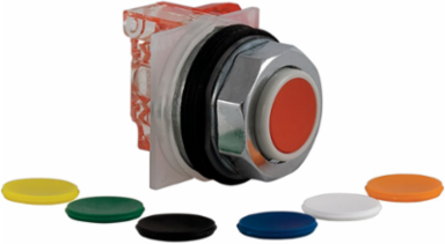

Schneider Electric 9001KR3UH13 Harmony 9001K 30mm Metal Push Button, Spring Return, 7 Colors Choice
- MPN: 9001KR3UH13
- UPC: 785901856474
- PPN: SCH-9001KR3UH13
CAD
$125.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered by Schneider Electric, the Harmony 9001K Metal Push Button combines functionality and style, making it an ideal choice for various automation and control applications. With a spring return mechanism, it provides reliable operation and immediate feedback, essential for efficient control in any setting. Available in seven distinct colors, this 30mm push button not only offers versatility for your design preferences but also enhances visibility and accessibility in industrial environments. Its robust metal construction ensures durability, making it a dependable component for pilot devices in any project.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 3 A 240 V AC-15, 0.55 A 125 V DC-13 (A600-Q600 NEMA)
- Rated Short-Circuit Making Capacity
- Up to 60 kA depending on voltage and usage category
- Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Conventional Free Air Thermal Current
- 10 A
- Operating Position
- Any position
- Mounting Diameter
- 30 mm (1.18 in)
- CAD Overall Height
- 45 mm (1.77 in)
- Net Weight
- 0.128 kg (0.28 lb)
- Type
- Push-button
- Operator Profile
- Projecting, 7 colours choice, unmarked
- Contacts Type and Composition
- 1 C/O (1 changeover)
- Connections - Terminals
- Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Protective Treatment
- TC
- IP Degree of Protection
- IP66 IEC 60529
- Standards
- IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C 4520, JIS C 852, CSA C22.2 No 14
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Vibration Resistance
- 7 gn 2-500 Hz IEC 60068-2-6
- Material
- Metal
Rated Breaking Capacity3 kA 240 V AC-15 to 6 kA 120 V AC-15, 720 VA
Rated Insulation Voltage250 V IEC 60947-1
Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
Mechanical Durability5,000,000 cycles
Size30 mm (1.18 in)
CAD Overall Width48 mm (1.89 in)
Cad Overall Depth56 mm (2.20 in)
Tightening Torque0.8 N.m (7.08 lbf.in) IEC 60947-1
Operator TypeSpring return
Shape of Signaling Unit HeadOctagonal
Contacts MaterialSilver alloy contacts
Bezel MaterialMetal
Electrical Shock Protection ClassClass II IEC 61140
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 12, 13
Product CertificationsUL 508, NEMA
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Shock Resistance50 gn IEC 60068-2-27
