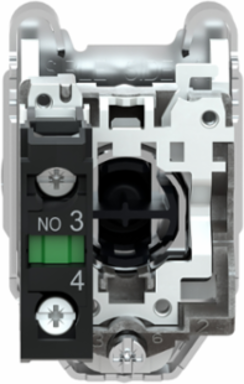

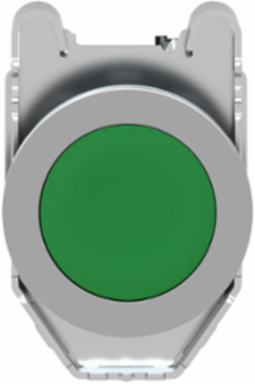

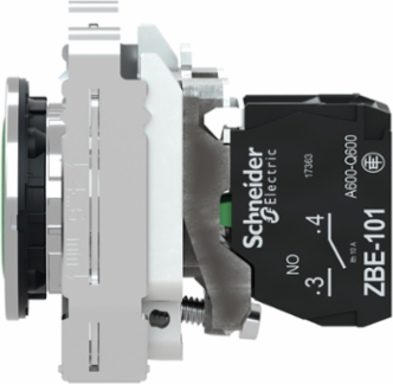

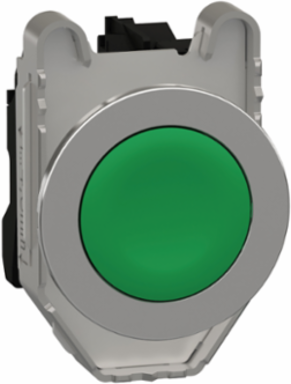

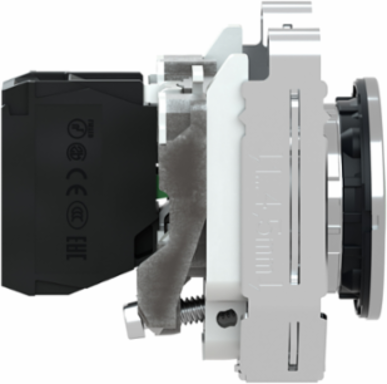

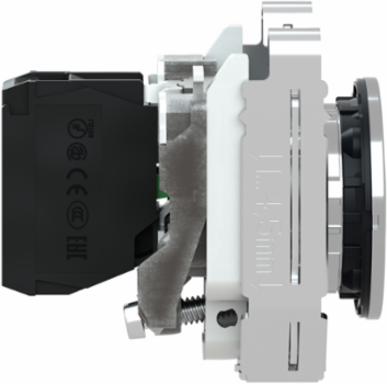

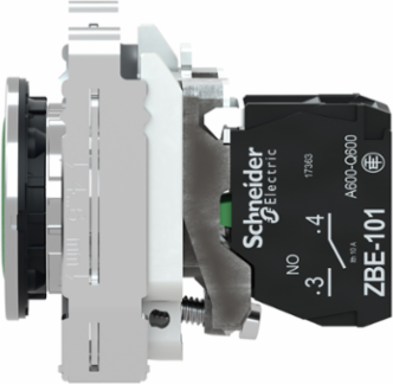

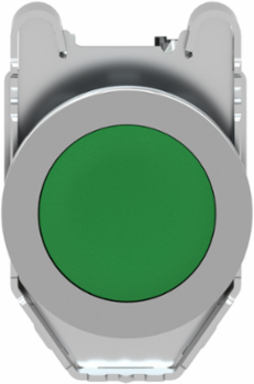

Schneider Electric XB4FA31 Harmony XB4 Green Metal Push Button, 30mm, 1NO, Spring Return, IP66

MPN: XB4FA31
PPN: SCH-XB4FA31

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$35.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and green. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France

Depth	55 mm

Physical Attributes

Cap Operator Or Lens Color	green

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	no, 1
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Contacts Composition	1 NO
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]	0.0143848161, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0220626335
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.1 kg CO2 eq., 0.061755
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	18 %
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Type And Composition	1 NO
Device Short Name	XB4F
Fixing Mode	by screws
Head Type	built-in-flush
Mounting Diameter	30.5 mm
Operating Travel	2.6 mm NO changing electrical state)4.3 mm total travel)
Positive Opening	without
Product Or Component Type	push-button
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Operator Profile	flush
Pep Code	ENVPEP2308035EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	84
Width Nominal	36.6 mm
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Cap/Operator Or Lens Colour	green
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	110.0 g
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	1.3326
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	1.5759
Customs Code	8538908180

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operator Profile	green flush, unmarked, flush
Cap Operator Or Lens Color	green
Certificate Agency	UL Listed, CSA
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1391376038, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.8 kg CO2 eq., 0.7796820878
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	19 %
Compatibility Code	XB4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	zamak
Gcr Bridge	XB4FACUST01
Mechanical Durability	10000000 cycles
Operating Force	3.8 N NO changing electrical state
Overvoltage Category	class I conforming to IEC 60536
Product Availability	Stock - Normally stocked in distribution facility
Product Repair Index	A
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Profile 1 Marking	unmarked
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	47 mm
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	1.3326
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	1.3326

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Product Compatibility	ZBYF..., ZBZF32, ZBZF33
Recycled Metal Content At Cr Level	18 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.0170221412
Environmental Disclosure	ENVPEP2308035EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2308035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
