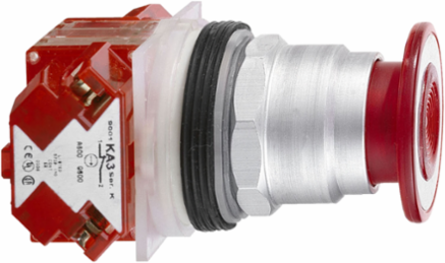

Schneider Electric 9001KR9R20H6 Harmony 9001K Red Push-Button, 30 mm Mushroom, IP66, 1 NC Contact
- MPN: 9001KR9R20H6
- PPN: SCH-9001KR9R20H6
CAD
$193.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- push-pull
- Device Short Name
- 9001K
Operator Profilered mushroom Ø 35 mm, unmarked
Product Or Component Typepush-button
Complementary
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Contacts Type And Composition
- 1 NC
- [Ui] Rated Insulation Voltage
- 250 V 3)EN/IEC 60947-1
- Bezel Material
- metal
- Contact Operation
- standard
- Operator Position Information
- 2 positions
- Positive Opening
- with IEC 60947-5-2
- Operator Profile
- mushroom Ø 35 mm
- Operating Position
- any position
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- red
- Tightening Torque
- 0.8-0.8 N.m EN/IEC 60947-1
- Shape Of Screw Head
- cross slotted
- Size
- 30 mm
[Icm] Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Operator Additional Informationmetal guard
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Contacts Materialsilver alloy contacts
Mechanical Durability5000000 cycles
Mounting Diameter30 mm
Type Of Operatorpush-pull
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headround
Head Materialplastic
Net Weight0.141 kg
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Device Presentationcomplete product
Environment
- Product Certifications
- NEMA || UL 508
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 61140
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
StandardsEN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
