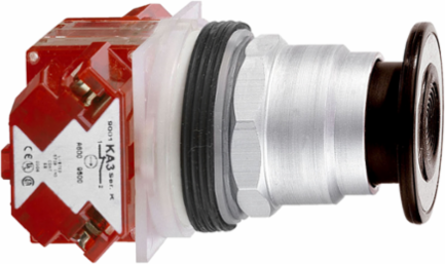

Schneider Electric 9001KR8BH25 Push-button, Harmony 9001K, metal, mushroom 41mm, black, 30mm, 3 positions, return to center, 1 NC late + 1 NC

Push-button, Harmony 9001K, metal, mushroom 41mm, black, 30mm, 3 positions, return to center, 1 NC late + 1 NC
  • MPN: 9001KR8BH25
  • UPC: 785901318477
  • PPN: SCH-9001KR8BH25

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Looking to buy a large quantity?

    To view product inventory

    CAD$198.11/ EA

    Description

    This Harmony 9001K, modular black push button has 3-postions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and is supplied with contact block, 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Specifications

    Environment

    Product Certifications
    UL 508 || NEMA
    Shock Resistance
    50 gn IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529
    Ambient Air Temperature For Storage
    -40-70 °C
    Nema Degree Of Protection
    NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    Ambient Air Temperature For Operation-25-70 °C
    Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
    StandardsEN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
    Overvoltage Categoryclass II IEC 61140
    Protective TreatmentTC

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A

    Complementary

    Operator Additional Information
    screw-on plastic
    Contacts Material
    silver alloy contacts
    Mounting Diameter
    30 mm
    [Ith] Conventional Free Air Thermal Current
    10 A
    Shape Of Signaling Unit Head
    round
    Head Material
    plastic
    [Uimp] Rated Impulse Withstand Voltage
    2.5 kV EN/IEC 60947-1
    Device Presentation
    complete product
    [Icm] Rated Short-Circuit Making Capacity
    12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.55 kA 125 V DC-13
    [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
    Operator Position Information
    3 positions
    Type Of Operator
    pull : spring return, center : stay put, push : spring return
    Tightening Torque
    0.8-0.8 N.m EN/IEC 60947-1
    Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
    Positive Openingwith IEC 60947-5-2
    Operator Profilemushroom Ø 41 mm
    Rated Breaking Capacity3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    Cap/Operator Or Lens Colourblack
    Net Weight0.195 kg
    Size30 mm
    Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    Contacts Type And Composition1 NC late break + 1 NC
    Bezel Materialmetal
    Contact Operationlate-break
    Mechanical Durability5000000 cycles
    Operating Positionany position
    Shape Of Screw Headcross slotted

    Key Specifications

    Range Of Product
    Harmony 9001K
    Product Or Component Type
    push-button
    Device Short Name
    9001K
    Type Of Operatorpull : spring return, center : stay put, push : spring return
    Operator Profileblack mushroom Ø 41 mm, unmarked
