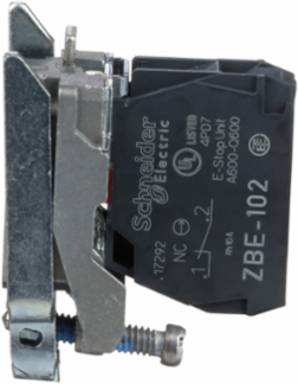

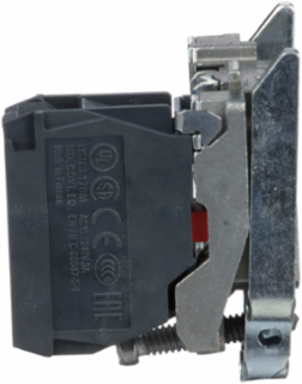

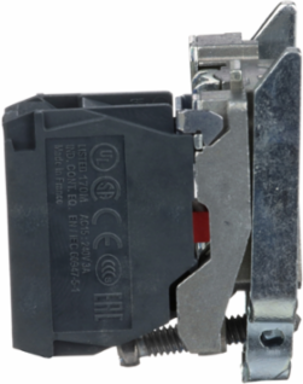

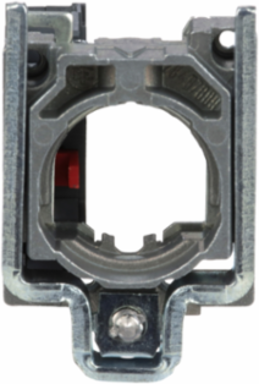

Schneider Electric ZB4BZ102 Harmony XB4 Single Contact Block, 1 NC, Screw Clamp Terminal, 37 mm Depth

MPN: ZB4BZ102
PPN: SCH-ZB4BZ102

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$23.17

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

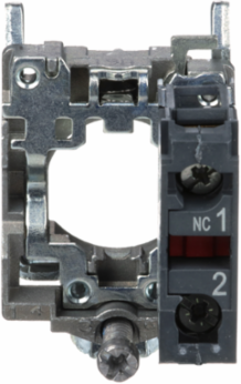

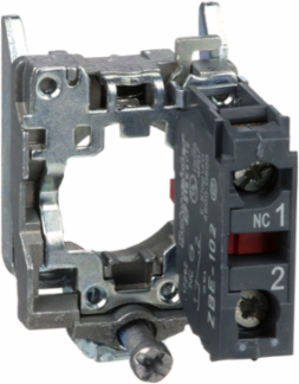

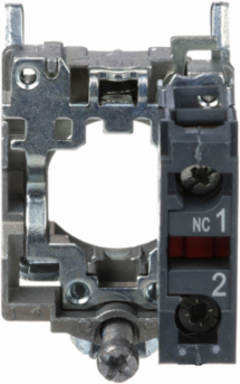

The ZB4BZ102 is a complete "Contact Block" assembly from the Schneider Electric Harmony XB4 metal range. It consists of the ZB4BZ009 mounting collar (the metal frame) and one ZBE102 Normally Closed (NC) contact block. This unit is the functional backbone that translates the physical press of a button or turn of a switch into an electrical signal.
This assembly features a single NC (Normally Closed) contact. In its resting state, the circuit is closed (power flows). When the associated push-button or selector switch is actuated, the contact opens and breaks the circuit. This is the standard configuration for Emergency Stop (E-Stop) buttons or "Stop" commands to ensure safety in the event of a wire break.

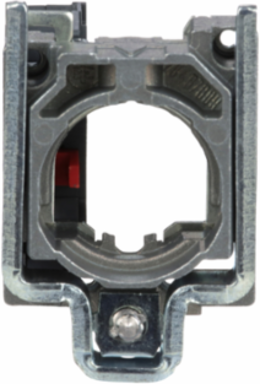

As part of the modular 22mm Harmony XB4 system, this mounting base is designed to snap onto any metal operator head, such as the ZB4BS844 (E-Stop), ZB4BA4 (Red Flush Push Button), or ZB4BD2 (Selector Switch). The metal collar provides a rigid, high-strength connection suitable for heavy-duty industrial use.
The mounting collar has three positions. The ZB4BZ102 comes with the NC block in the center or side position, leaving room to "stack" additional contact blocks. You can add more ZBE series blocks (either NO or NC) to control multiple independent electrical circuits with a single button press.
The ZB4BZ102 is engineered for maximum reliability with silver alloy contacts designed for low-energy switching. It features high-quality screw clamp terminals for secure wiring. It is UL Listed, CSA Certified, and CE marked, maintaining the IP66/NEMA 4X integrity of your control station when paired with the appropriate Harmony head.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Physical Attributes

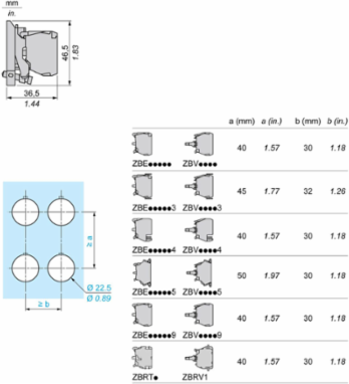

Cad Overall Depth	37 mm
Cad Overall Width	30 mm

Cad Overall Height	47 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contacts Usage	standard contacts, standard contacts
Device Composition	fixing collar, body, fixing collar
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Contacts Composition	1 NC
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]	0.006930866, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0106301779, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.026093662
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308035EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	16 %
Compatibility Code	ZB4
Contact Operation	slow-break
Contacts Type And Composition	1 NC
Fixing Collar Material	zamak
Mechanical Durability	5000000 cycles
Operating Travel	1.5 mm NC changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2308035EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	84
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Electrical Durability	10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Terminals Description Iso N°1	(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0670390273
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3756650059
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	23 %
Contact Block Type	single
Contacts Material	silver alloy (Ag/Ni)
Device Short Name	ZB4
Head Type	standard
Operating Force	2 N NC changing electrical state
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminals	screw clamp terminals
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	52.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	16 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4863587391
Environmental Disclosure	ENVPEP2308035EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2308035EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2308035EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
