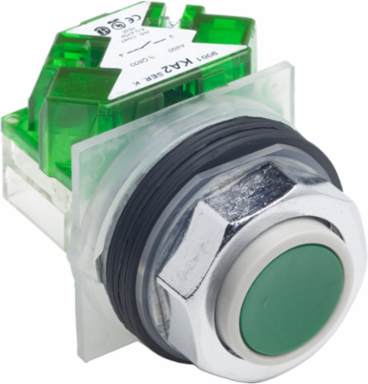

Square D 9001KR3GH5 Push-button, Harmony 9001K, metal, projecting, green, 30mm, spring return, 1 NO
Square D 9001KR3GH5 Push-button, Harmony 9001K, metal, projecting, green, 30mm, spring return, 1 NO
- MPN: 9001KR3GH5
- UPC: 785901856887
- PPN: SCH-9001KR3GH5
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$91.78/ EA
Description
This Harmony 9001K, modular projecting green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, has 1 x NO contact and uses screw-clamp terminals. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Specifications
- Operator Additional Information
- without guard
- Operator Profile
- green projecting
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001K
Type Of Operatorspring return
Device Short NameK
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Contacts Type And Composition
- 1 NO
- Bezel Material
- metal
- Connections - Terminals
- screw clamp terminals
- Light Block Supply
- without supply
- Operator Profile
- projecting
- Operating Position
- any position
- Size
- 30 mm
Light Sourcewithout
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Contact Operationstandard
Mounting Diameter30 mm
Type Of Operatorspring return
Cap/Operator Or Lens Colourgreen
Device Presentationcomplete product
Environment
- Product Certifications
- CE || UL listed file E42259 CCN NKCR || NEMA || CSA LR 25490 class 3211 03
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
