Square D 9001SKR3UH6 Harmony 30mm Push Button, 1 NC Contact, Spring Return, 7 Colors, IP66
Square D 9001SKR3UH6 Harmony 30mm Push Button, 1 NC Contact, Spring Return, 7 Colors, IP66
- MPN: 9001SKR3UH6
- UPC: 785901042778
- PPN: SCH-9001SKR3UH6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.25/ EA
Description

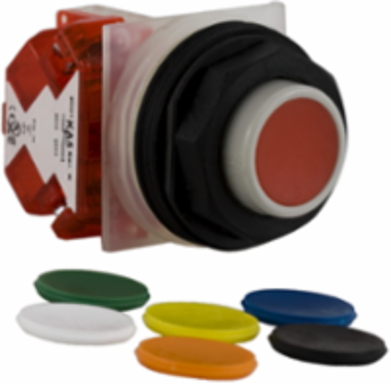

This Harmony 9001SK, modular projecting push button with set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This projecting push button with set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Contacts Type And Composition
- 1 NC
- Contact Operation
- standard
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Size
- 30 mm
Bezel Materialplastic
Mechanical Durability5000000 cycles
Operator Profileprojecting
Cap/Operator Or Lens Colour7 colours choice
Device Presentationcomplete product
Specifications
- Operator Additional Information
- without guard
- Operator Profile
- 7 colours choice projecting
- Product Or Component Type
- push-button
Range Of ProductHarmony 9001SK
Type Of Operatorspring return
Device Short Name9001SK
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Standards
- UL 508 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-4
- Ip Degree Of Protection
- IP66
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
