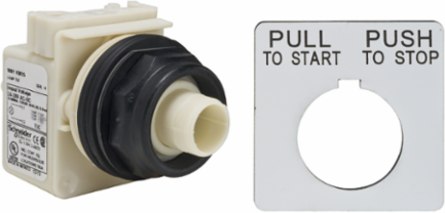

Square D 9001SKR9H13 Push-Button Harmony 9001SK 30 mm, Plastic, IP66, 1 C/O, 2 Positions
- MPN: 9001SKR9H13
- UPC: 785901043034
- PPN: SCH-9001SKR9H13
CAD
$220.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for versatility and durability, the Schneider Electric 9001SKR9H13 Push-Button is a key component in automation and control systems. This 30 mm plastic push-button is designed to provide reliable operation with its two-position, one changeover (C/O) functionality, making it ideal for various industrial applications. Enhanced with an IP66 rating, it ensures effective protection against dust and water, allowing for seamless performance in challenging environments. The intuitive design of the Harmony 9001SK series not only enables easy integration into existing systems but also enhances usability in control panels.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 5,000,000 cycles
- NEMA Degree of Protection
- NEMA 1/2/3/3R/4/4X/6/12/13
- Contacts Type and Composition
- 1 C/O
- Size
- 30 mm
- Material
- plastic
- Standards
- UL 508, JIS C 4520, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C 852
- Reach Free Of Svhc
- Yes
- Toxic Heavy Metal Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Device Short Name
- 9001SK
- Cap/Operator Or Lens Colour
- without mushroom
- Contact Operation
- standard
- Weee
- Must be disposed properly in EU
- Warranty
- 18 months
IP Degree of ProtectionIP66
Operator Positions2 positions
Type Of Operatorpush-pull
Mounting Diameter30 mm
Product Typepush-button
Eu Rohs DirectivePro-active compliance (out of EU RoHS scope)
Mercury FreeYes
China RoHSCompliant
Environmental DisclosureENVPEP120816EN
Range Of ProductHarmony 9001SK
Device Presentationcomplete product
Rohs Exemption InformationYes
Circularity ProfileN/A
Country of OriginMX
