Schneider Electric 9001KR3R Push-button Head, Harmony 9001K, Metal, 30mm, Red, Spring Return
Schneider Electric 9001KR3R Push-button Head, Harmony 9001K, Metal, 30mm, Red, Spring Return
- MPN: 9001KR3R
- UPC: 785901874904
- PPN: SCH-9001KR3R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$49.98/ EA
Description

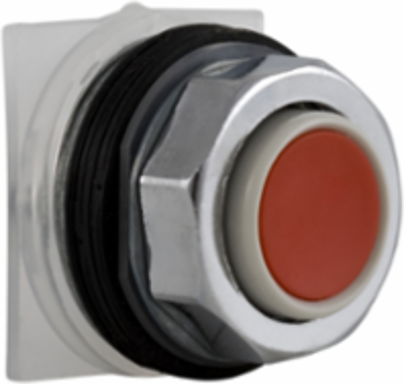

This Harmony 9001K, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This projecting push button provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Contacts Type And Composition
- without contact block
- Mounting Diameter
- 30 mm
- Operator Profile
- projecting
- Cap/Operator Or Lens Colour
- red
Bezel Materialmetal
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Specifications
- Operator Additional Information
- without guard
- Operator Profile
- red flush
- Device Short Name
- 9001K
Range Of ProductHarmony 9001K
Product Or Component Typehead for push-button
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
