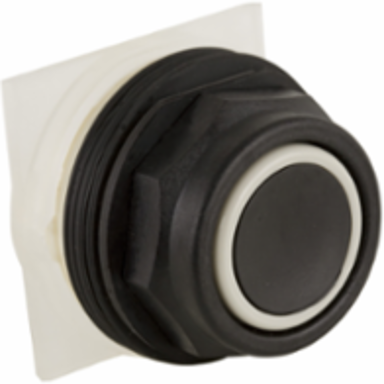

Schneider Electric 9001SKR1B Harmony 30mm Flush Black Push Button Head, Spring Return, IP64
- MPN: 9001SKR1B
- UPC: 785901793878
- PPN: SCH-9001SKR1B
CAD
$49.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001SK, modular flush black push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- Part of the Harmony™ 9001SK line, this non-illuminated push button head features a heavy-duty 30 mm (1.18-inch) mounting diameter chassis molded entirely from premium, glass-reinforced plastic. It is explicitly engineered as a corrosion-resistant alternative to standard metal bezels, ensuring it won't pit, rust, or degrade when exposed to harsh chemical environments like wastewater treatment, chemical processing, and food production facilities.
- Designed with a sleek, flush profile, the black plastic cap sits neatly inside its protective outer ring. This flush architecture ensures the button can only be engaged by an intentional, direct finger press, providing machine builders with a secure physical interface for critical system inputs like "Start," "Reset," or manual cycle steps while avoiding dangerous ghost-trips from falling shop tools or accidental side swipes.
- This device features a high-velocity, spring-return mechanism that delivers crisp, momentary physical feedback. The internal contacts are only engaged for the exact duration of time your finger holds the button down; the millisecond pressure is removed, the actuator instantly snaps back to its resting position. This rapid response prevents stuck-signal faults and makes it perfect for sending short impulse signals to automated PLC logic loops or auxiliary starter coils.
- Boasting comprehensive IP64 and NEMA Type 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 protection ratings, this oil-tight, dust-tight, and waterproof operator completely isolates the internal wiring panel. It features a heavy-duty internal rubber diaphragm that allows continuous, high-cycle operation while acting as an absolute barrier against sweeping industrial dust, coolant mist, flying metal shavings, and direct high-pressure hose jets.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for push-button
Complementary
- Product Certifications
- CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
- Light Source
- without
- Nema Degree Of Protection
- NEMA 1/2/3/3R/4/4X/6/12/13
- Mounting Diameter
- 30 mm
- Type Of Operator
- spring return
- Cap/Operator Or Lens Colour
- black
- Ip Degree Of Protection
- IP64
Contacts Type And Compositionwithout contact block
Bezel Materialplastic
Light Block Supplywithout supply
Operator Profileflush
Shape Of Signaling Unit Headoctagonal
Size30 mm
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
