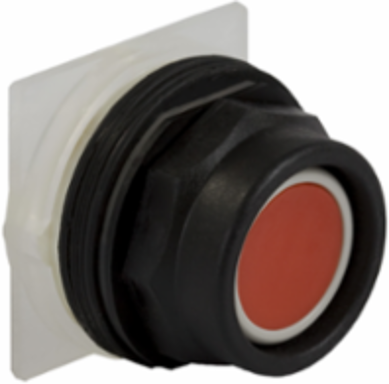

Schneider Electric 9001SKR1R Harmony 9001SK Red Push-Button Head, 30mm, Spring Return, IP64
- MPN: 9001SKR1R
- UPC: 785901820888
- PPN: SCH-9001SKR1R
CAD
$49.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001SK, modular flush red push button with full guard has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- Part of the HarmonyTM 9001SK line, this non-illuminated push button head features a heavy-duty 30 mm (1.18-inch) mounting diameter chassis molded entirely from premium, glass-reinforced plastic. It is explicitly engineered as a corrosion-resistant alternative to standard metal bezels, ensuring it won't pit, rust, or degrade when exposed to harsh chemical environments like wastewater treatment, chemical processing, and food production facilities.
- Designed with a sleek, flush profile, the red plastic cap sits neatly inside its protective outer ring. This flush architecture ensures the button can only be engaged by an intentional, direct finger press, providing machine builders with a secure physical interface for critical system inputs like "Stop" or "Reset" while avoiding dangerous ghost-trips from falling shop tools or accidental side swipes.
- This device features a high-velocity, spring-return mechanism that delivers crisp, momentary physical feedback. The internal contacts are only engaged for the exact duration of time your finger holds the button down; the millisecond pressure is removed, the actuator instantly snaps back to its resting position. This rapid response prevents stuck-signal faults and makes it perfect for sending short impulse signals to automated PLC logic loops or auxiliary starter coils.
- Boasting comprehensive IP64 and NEMA Type 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 protection ratings, this oil-tight, dust-tight, and waterproof operator completely isolates the internal wiring panel. It features a heavy-duty internal rubber diaphragm that allows continuous, high-cycle operation while acting as an absolute barrier against sweeping industrial dust, coolant mist, flying metal shavings, and direct high-pressure hose jets.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CE, UL listed file E42259 CCN NKCR, CSA LR24590 class 3211 03
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- plastic
- Device Short Name
- 9001SK
- Light Source
- without
- Operator Profile
- flush
- Product Or Component Type
- head for push-button
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 46.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Compositionwithout contact block
Light Block Supplywithout supply
Mounting Diameter30 mm
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001SK
Shape Of Signaling Unit Headoctagonal
Type Of Operatorspring return
Pep CodeENVPEP2503027EN
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ip Degree Of Protection
- IP64, IP65/IP66
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Nema Degree Of ProtectionNEMA 3R/4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony 9001SK
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
