Harmony Projecting Red Push-Button Head, 30 mm, Spring Return, IP64
Schneider Electric

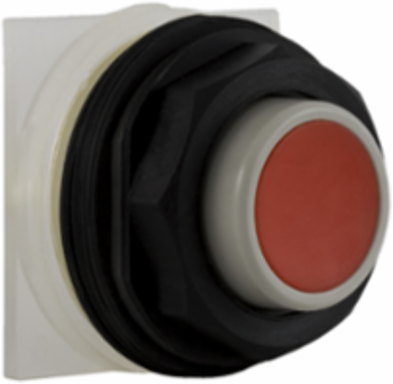

Schneider Electric 9001SKR3R Harmony Projecting Red Push-Button Head, 30 mm, Spring Return, IP64

  • MPN: 9001SKR3R
  • UPC: 785901048565
  • PPN: SCH-9001SKR3R

CAD

$49.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony 9001SK, modular projecting red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Harmony 9001SK
Device Short Name
9001SK
Product Or Component Typehead for push-button

Complementary

Product Certifications
CE || UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03
Light Source
without
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Mounting Diameter
30 mm
Type Of Operator
spring return
Cap/Operator Or Lens Colour
red
Ip Degree Of Protection
IP64
Contacts Type And Compositionwithout contact block
Bezel Materialplastic
Light Block Supplywithout supply
Operator Profileprojecting
Shape Of Signaling Unit Headoctagonal
Size30 mm

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
EnvPEP120817EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
